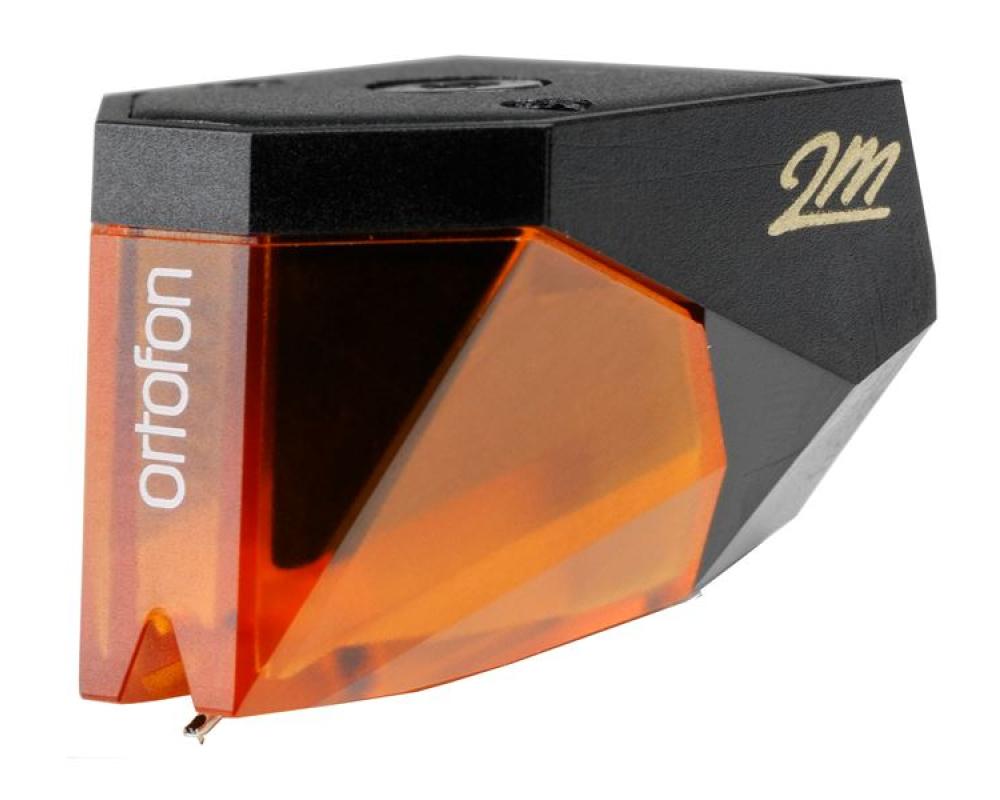

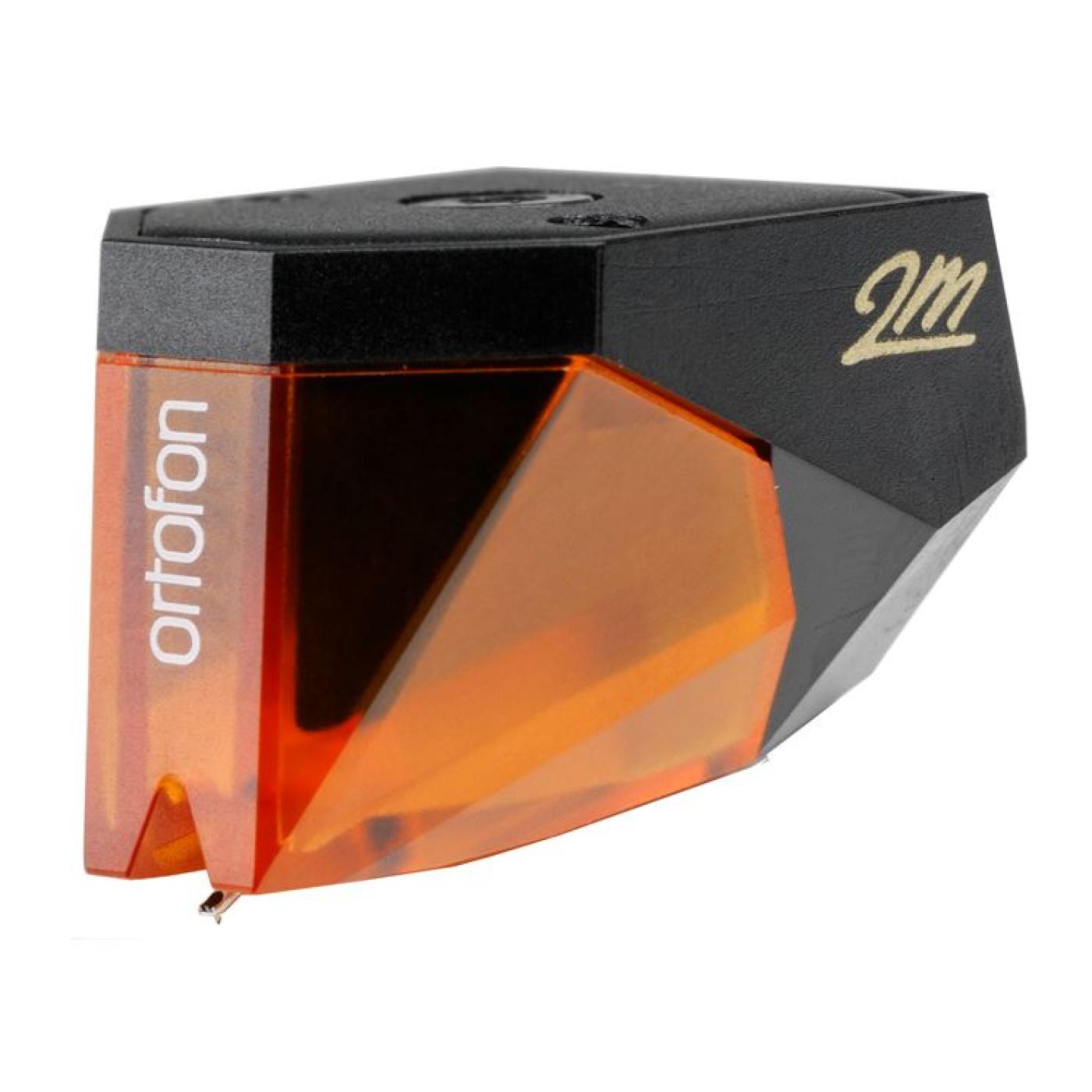

Ortofon Hifi 2M Bronze

ID: 190020
|
Ref: 2MBRONZE
Ver vídeo
Fiz uma encomenda de um microfone condensador de entrada de média gama o mesmo não veio em conformes, contudo tenho de salientar que foi contornada toda a problemática com bastante profissionalismo através de telefone e email para a Sede. Profissionais com tato a encontrar uma solução e acima de tudo tem a premissa pela satisfação do cliente. Para concluir, as encomendas são muito mais rápidas a serem entregues do que a concorrência. O entregador nas minhas encomendas teve sempre o cuidado de me ligar, mesmo estando na morada. Recomendo apartir de Braga.
Células
Ortofon Hifi 2M Bronze

Ortofon DJ 2M Bronze - Cabeça -

Output voltage at 1000 Hz, 5cm/sec.  -  5 mV

Channel balance at 1 kHz  -  1 dB

Channel separation at 1 kHz  -  26 dB

Channel separation at 15 kHz  -  15 dB

Frequency range at - 3dB  -  20-29.000 Hz

Frequency response  -  20-20.000 + 2 / - 0 dB

Tracking ability at 315Hz at recommended tracking force  -  80 µm

Compliance, dynamic, lateral  -  22 µm/mN

Stylus type  -  Nude Fine Line

Stylus tip radius  -   r/R 8/40 µm

Tracking force range  -  1.4-1.7 g (14-17 mN)

Tracking force, recommended  -  1.5 g (15 mN)

Tracking angle  -  20°

Internal impedance, DC resistance  -  1.2 kOhm

Internal inductance  -  630 mH

Recommended load resistance  - 47 kOhm

Recommended load capacitance  -  150-300 pF

Cartridge colour, body/stylus  -  Black/Bronze

Cartridge weight  -   7.2 g

2M PnP MkII cartridge with integrated headshell weight  -  20 g

2M PnP MkII cartridge with integrated headshell length - 52 mm


Replacement stylus unit  -  2M Bronze (interchangeable with 2M Black)


Stylus lifetime: with proper care we find that up to 1000 hours is possible without degradation of performance. Please read about stylus care on our FAQ.


2M Series styli interchangeability:

The 2M Series' engines, coils and magnets configurations are not identical: Red and Blue are identical, so are the Bronze and Black and so are the true mono variants 2M Mono and 2M 78. Likewise, 2M series styli are interchangeable within the below combinations:

- 2M Red, 2M Blue and 2M Silver

- 2M Bronze and 2M Black

- 2M Mono and 2M 78


Compatibility with Rega brand TT/TA:

REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.

Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.

3.2 - 4 mm spacers should be enough for 2M cartridge.

BimotorDJ.com
  • 359€

    IVA incluído.
