Audio Technica AT2035 - Microfone de membrana grande -
Designed for critical home/project/professional studio applications and live performance, this side-address cardioid studio condenser delivers exceptional detail and low noise. Equipped with a switchable 80 Hz high-pass filter and 10 dB pad, the AT2035 handles high sound pressure levels with ease. Along with its rugged construction and high-performance specifications, the AT2035 provides an exceptional level of consistency from model to model. It comes equipped with a protective pouch and a custom shock mount.
- Large diaphragm for smooth, natural sound and low noise
- High SPL handling and wide dynamic range provide unmatched versatility
- Custom shock mount provides superior isolation
- Switchable 80 Hz high-pass filter and 10 dB pad
- Cardioid polar pattern reduces pickup of sounds from the sides and rear, improving isolation of desired sound source

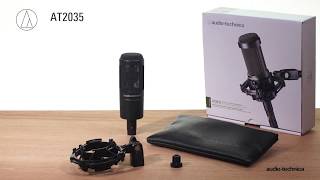

- Includes custom shock mount & protective pouch
ELEMENT
|
Fixed-charge
back plate, permanently polarized condenser
|
POLAR PATTERN
|
Cardioid
|
FREQUENCY
RESPONSE
|
20-20,000
Hz
|
LOW FREQUENCY ROLL-OFF
|
80 Hz, 12 dB/octave
|
OPEN
CIRCUIT SENSITIVITY
|
-33
dB (22.4 mV) re 1V at 1 Pa
|
IMPEDANCE
|
120 ohms
|
MAXIMUM
INPUT SOUND LEVEL
|
148
dB SPL, 1 kHz at 1% T.H.D.;
158 dB SPL, with 10 dB pad
(nominal)
|
NOISE
|
12 dB SPL
|
DYNAMIC
RANGE (typical)
|
136
dB, 1 kHz at Max SPL
|
SIGNAL-TO-NOISE RATIO
|
82 dB, 1 kHz at 1 Pa
|
PHANTOM
POWER REQUIREMENTS
|
11-52V
DC, 3.8 mA typical
|
SWITCHES
|
Flat, roll-off;
10 dB pad (nominal)
|
WEIGHT
|
403
g (14.2 oz)
|
DIMENSIONS
|
170.0 mm (6.69") long,
52.0 mm (2.05") maximum
body diameter
|
OUTPUT
CONNECTOR
|
Integral
3-pin XLRM-type
|
ACCESSORIES FURNISHED
|
AT8458 shock mount for 5/8"-27 threaded stands; 5/8"-27
to 3/8"-16 threaded adapter; soft protective pouch
|
AUDIO-TECHNICA
CASE STYLE
|
R5
|
