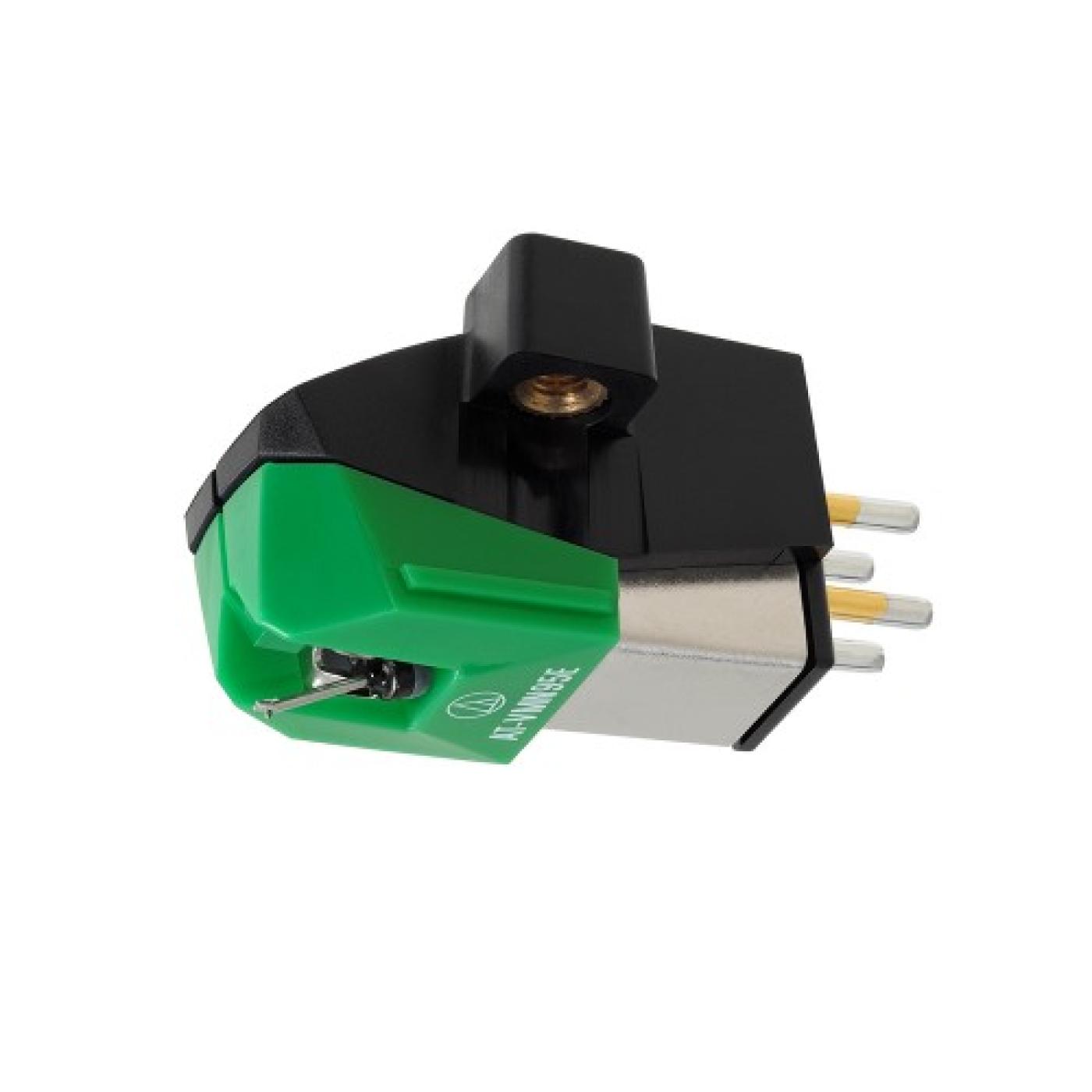

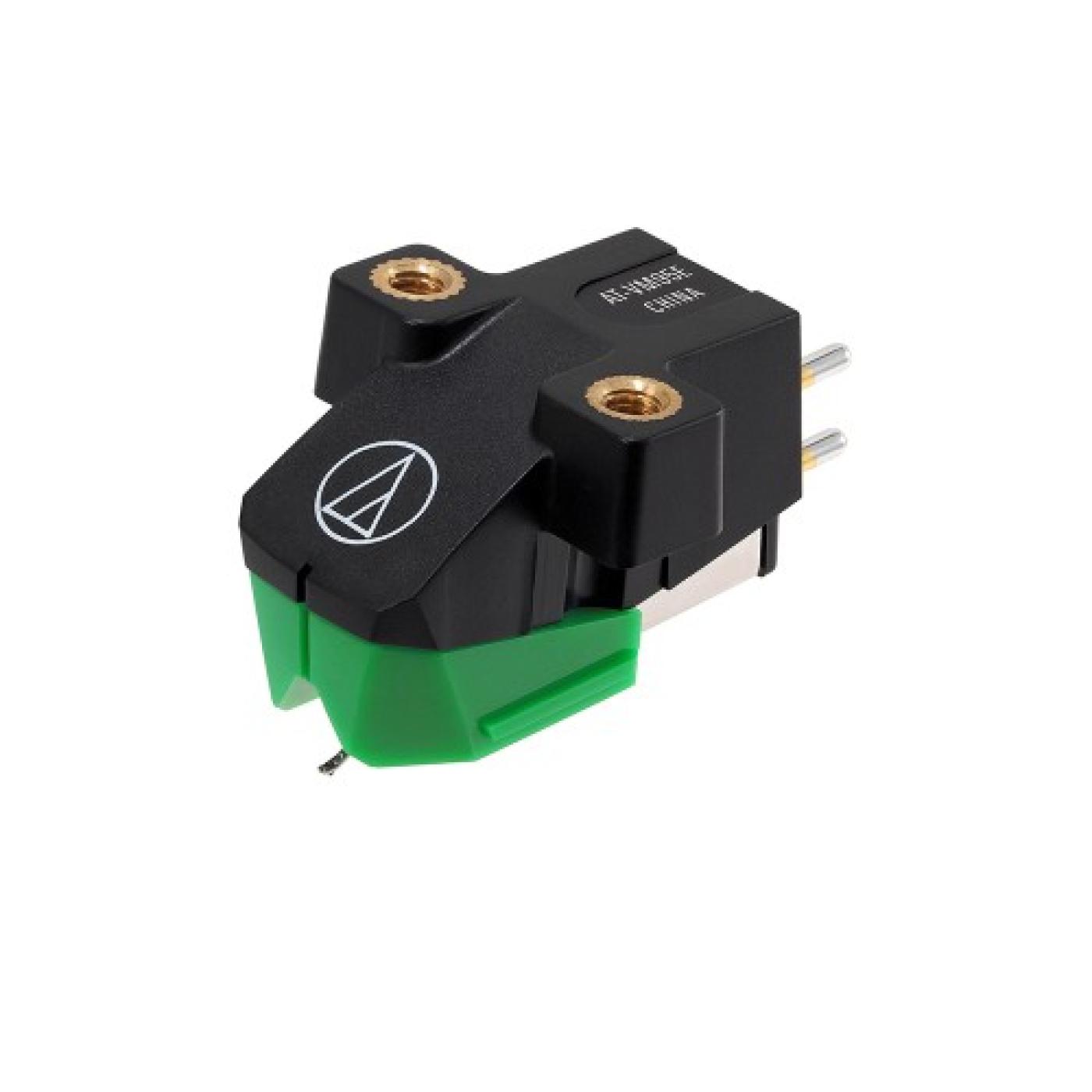

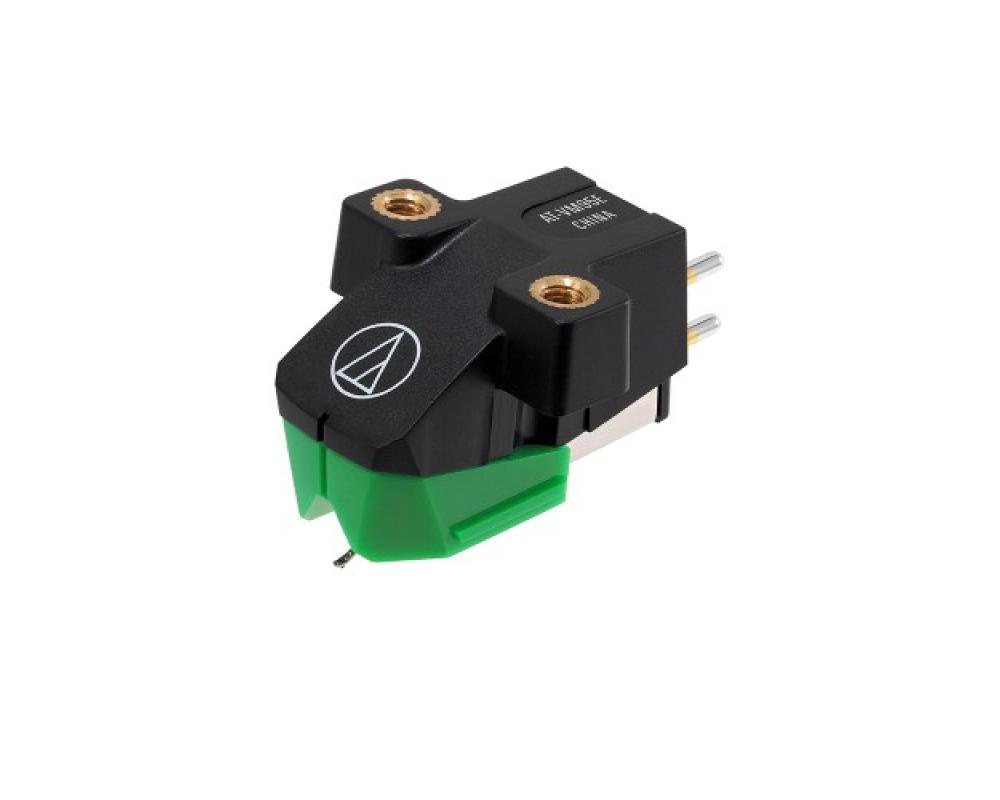

AT-VM95E
VM95 series Elliptical stereo cartridge
The AT-VM95E, the new Audio-Technica entry model Elliptical cartridge will replace the legendary AT95E and take advantage of the developments of the AT95EX introduced in 2015. The AT-VM95E features an improved and distinctive design resulting in a more rigid low resonance housing, and two threaded inserts in the cartridge body enabling it to be mounted to the headshell or on an integral tonearm with just two screws, no nuts.
- Aluminium cantilever
- 4.0mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- Replacement for AT95E and AT95EX
- 20 to 22,000Hz frequency response
Model AT-VM95E
Type
VM Stereo Dual Magnet
Mounting
1/2” centres
Frequency Response 20 - 22,000 Hz
Channel Separation 20 dB (1 kHz)
Output Channel Balance 2.0 dB (1 kHz)
Output Voltage
4.0 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle 23°
Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g)
Stylus Shape Elliptical
Stylus Size 0.3 x 0.7 mil
Stylus Construction Bonded Round Shank
Cantilever Aluminium Pipe
Coil Impedance 3.3 kΩ (1 kHz)
Coil Inductance 550 mH (1 kHz)
DC Resistance 485 Ω
Static Compliance 17 x 10 – 6 cm / dyne
Dynamic Compliance
7 x 10 – 6 cm / dyne (100 Hz)
Wire Used for Coil T.P. Copper
Recommended Load Impedance 47,000 Ω
Recommended Load Capacitance
100-200 pF
Cartridge Weight 6.1g
Dimensions
17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus AT-VMN95E
Accessories Included
Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
-
65.00€
-
65.00€
