ID: 188512 | Ref: ATVM95EH |
Disponível desde: 2019-11-21
O kit combinado AT-VM95E / H inclui o cartucho magnético duplo AT-VM95E pré-montado no cabeçote AT-HS6BK.
AT-VM95E/H

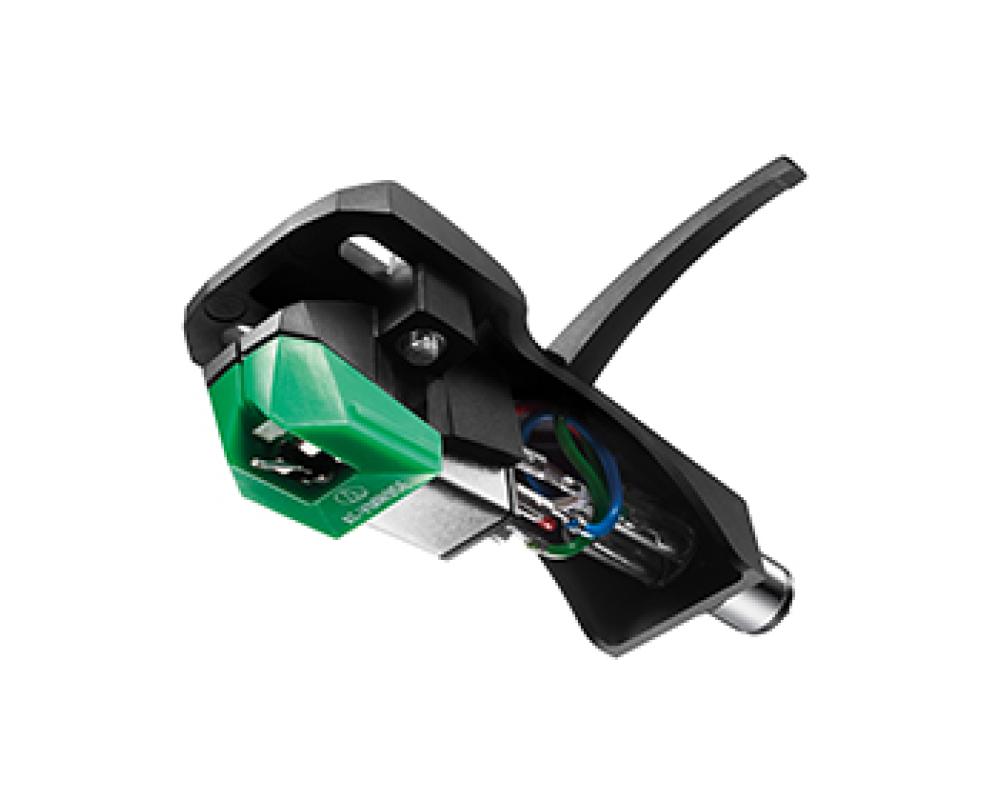

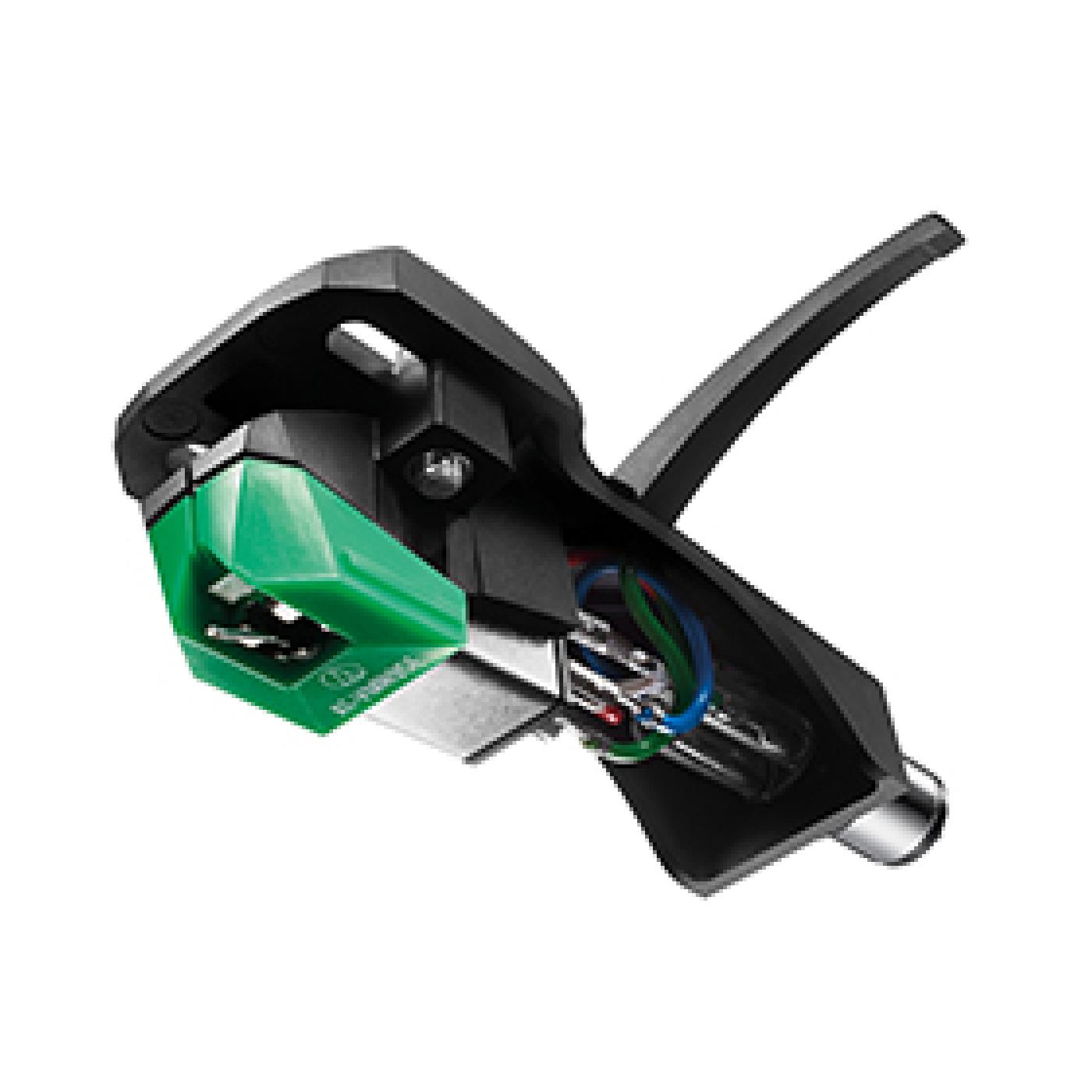

VM95 series Elliptical stereo cartridge on AT-HS6 Headshell
- AT-VM95E mounted on AT-HS6BK headshell
- The total set weight is 15.5g
- Assembled and tested in the Audio-Technica Factory in Fukui-Japan
Model AT-VM95E/H
Type VM Stereo Dual Magnet
Mounting 1/2” centres
Frequency Response
20 - 22,000 Hz
Channel Separation 20 dB (1 kHz)
Output Channel Balance 2.0 dB (1 kHz)
Output Voltage
4.0 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle 23°
Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g)
Stylus Shape
Elliptical
Stylus Size
0.3 x 0.7 mil
Stylus Construction Bonded Round Shank
Cantilever
Aluminium Pipe
Coil Impedance 3.3 kΩ (1 kHz)
Coil Inductance 550 mH (1 kHz)
DC Resistance 485 Ω
Static Compliance 17 x 10 – 6 cm / dyne
Dynamic Compliance
7 x 10 – 6 cm / dyne (100 Hz)
Wire Used for Coil T.P. Copper
Recommended Load Impedance
47,000 Ω
Recommended Load Capacitance
100-200 pF
Weight 15.5 g
Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm)
Replacement Stylus AT-VMN95E
-
90.00€
-
90.00€
Envio grátis acima de 199.00€



Produtos Relacionados
Tags: Audio-Technica AT-VM95E/H, ATVM95EH, Células
