Este cartucho da série VM95 com caneta Microlinear de 2,2 x 0,12 mil se encaixa em plataformas giratórias de meia polegada. ...

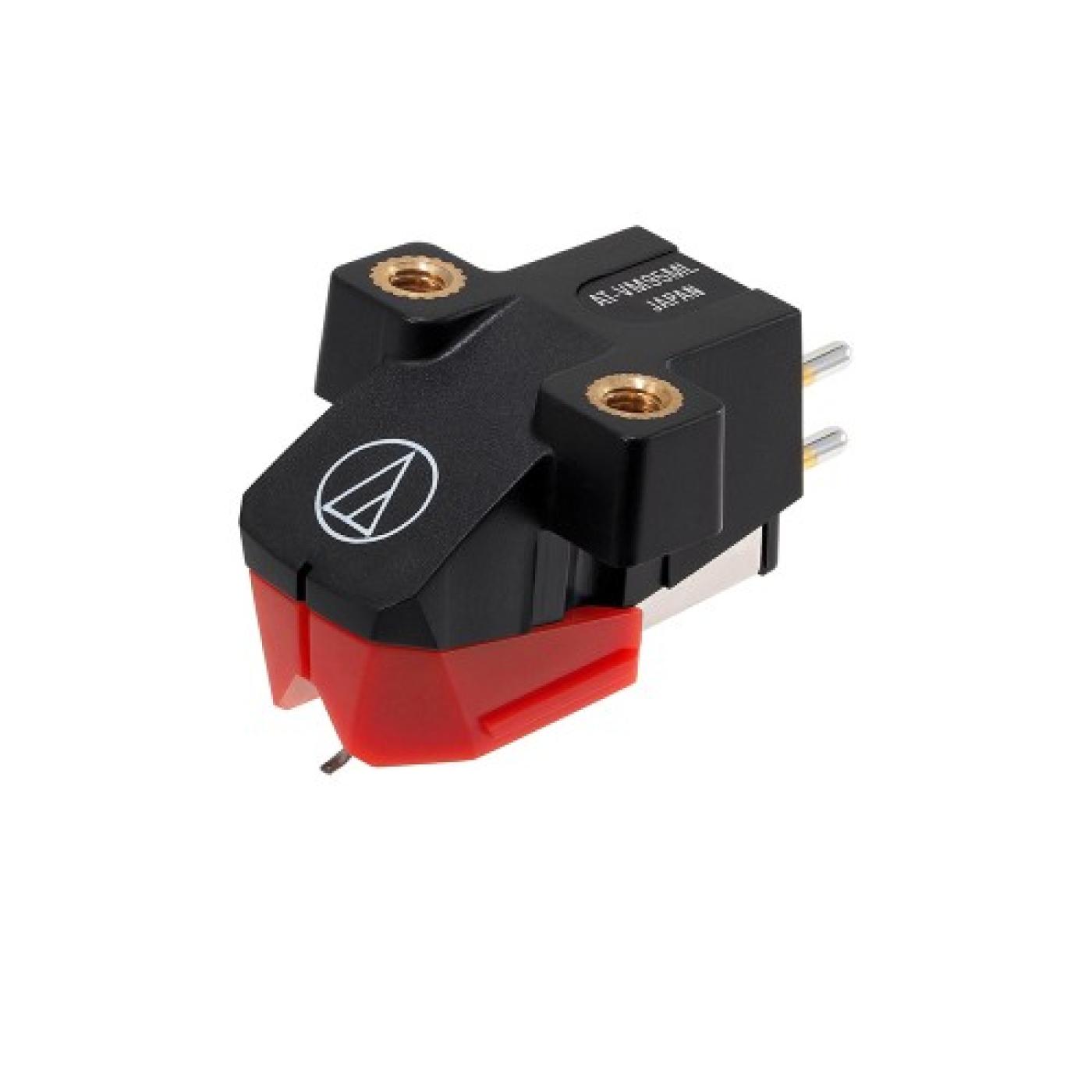

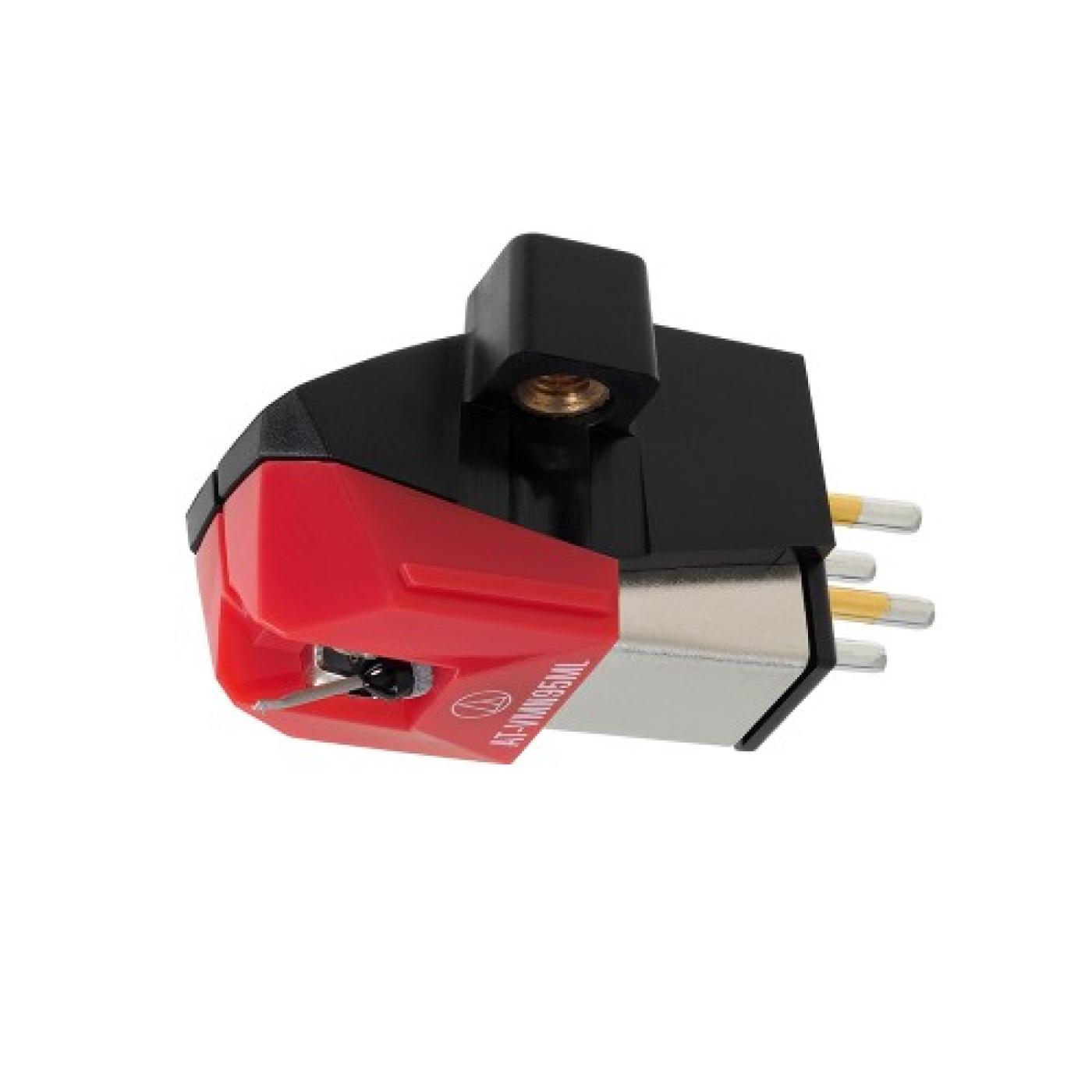

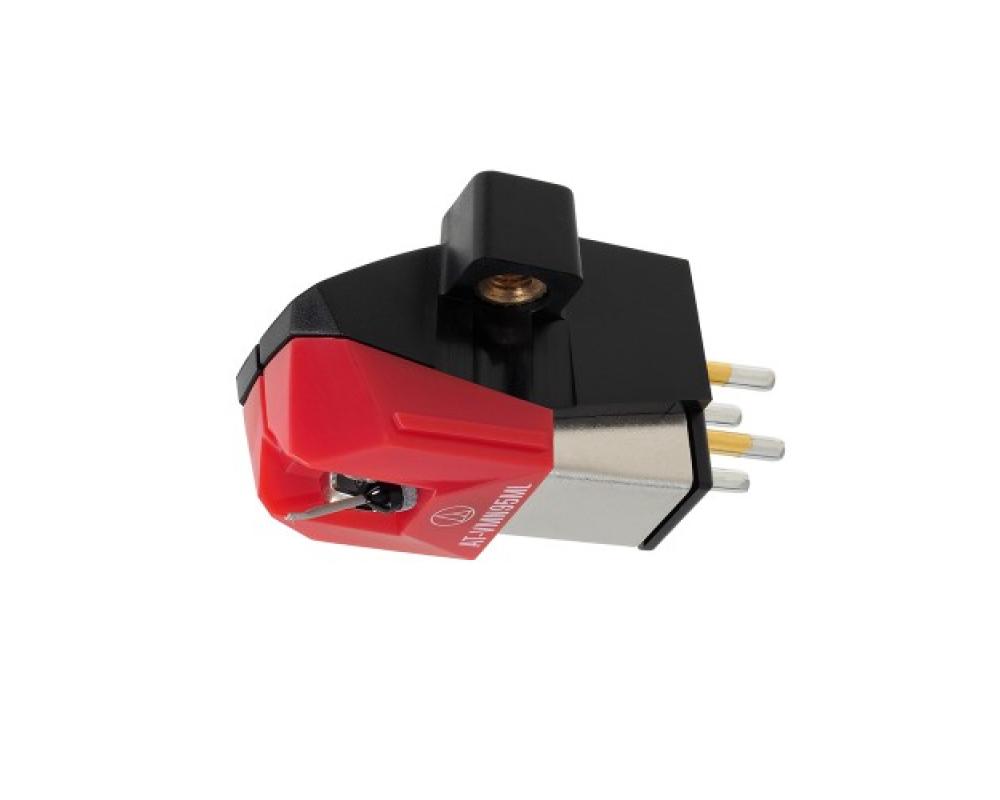

AT-VM95ML
VM95 series Microlinear stereo cartridge
The AT-VM95ML, features a Nude Microlinear diamond, not only the Microlinear stylus will permit to double the duration of your stylus. The performance of a line contact stylus, will minimize the “inner groove distortion” as well as providing extended frequency response and maximize resolution in the medium and high frequencies of the audio program material.
- material. Aluminium cantilever
- 3.5mV output voltage
- Compatible body with all VM95 Series stylus assemblies
- 20 to 25,000Hz frequency response
Model
AT-VM95ML
Type
VM Stereo Dual Magnet
Mounting
1/2” centres
Frequency Response
20 - 25,000 Hz
Channel Separation
23 dB (1 kHz)
Output Channel Balance
1.5 dB (1 kHz)
Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec)
Vertical Tracking Angle
23°
Vertical Tracking Force Range
1.8 - 2.2g (standard 2.0 g)
Stylus Shape
Microlinear
Stylus Size
2.2 x 0.12 mil
Stylus Construction Nude Square Shank
Cantilever Aluminium Pipe
Coil Impedance 3.3 kΩ (1 kHz)
Coil Inductance 550 mH (1 kHz)
DC Resistance
485 Ω
Static Compliance
20 x 10 – 6 cm / dyne
Dynamic Compliance
10 x 10 – 6 cm / dyne (100 Hz)
Wire Used for Coil T.P. Copper
Recommended Load Impedance 47,000 Ω
Recommended Load Capacitance
100-200 pF
Cartridge Weight
6.1g
Dimensions 17.2 x 18.9 x 28.3 ( H x W x D mm)
Replacement Stylus AT-VMN95ML
Accessories Included
Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Non-magnetic screwdriver
-
