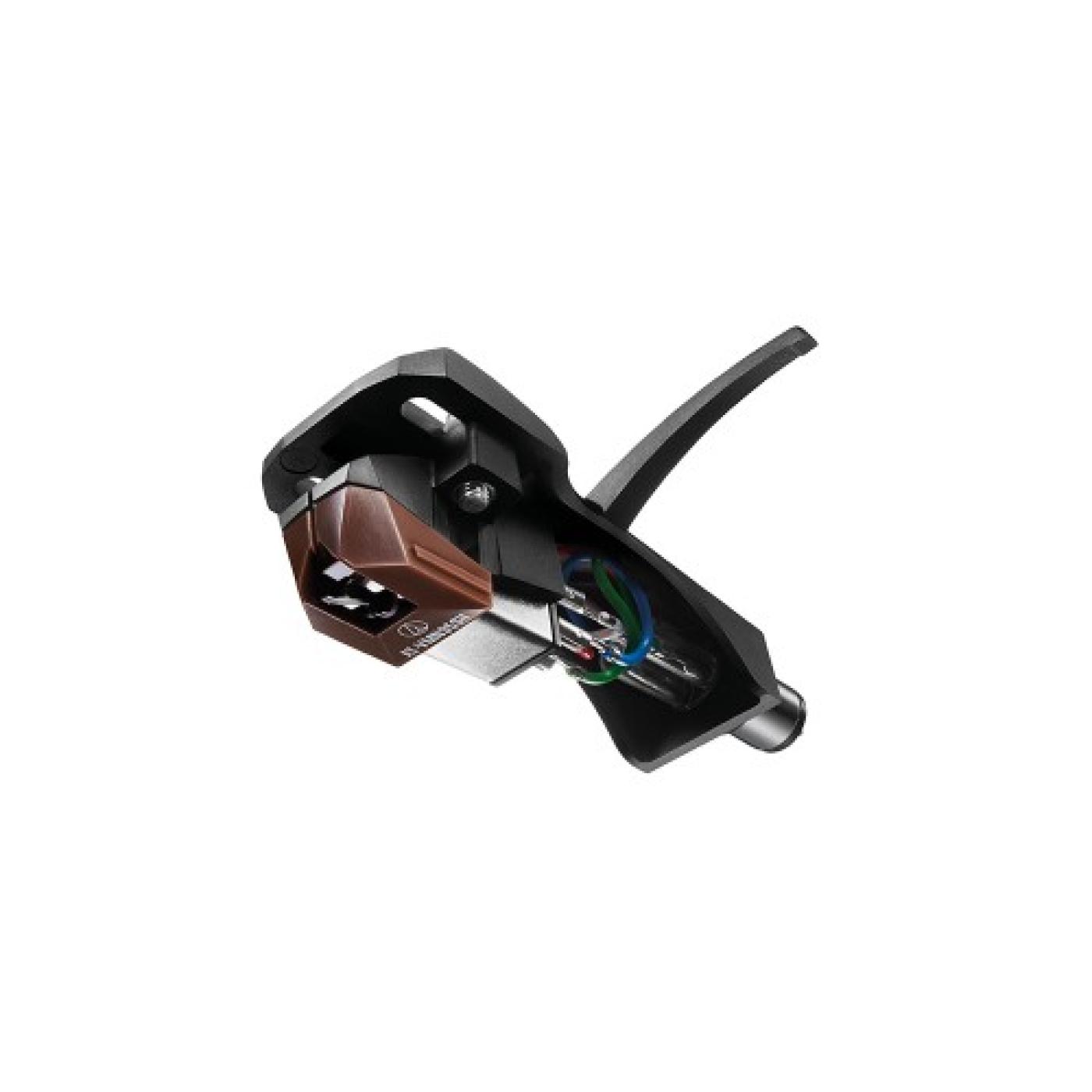

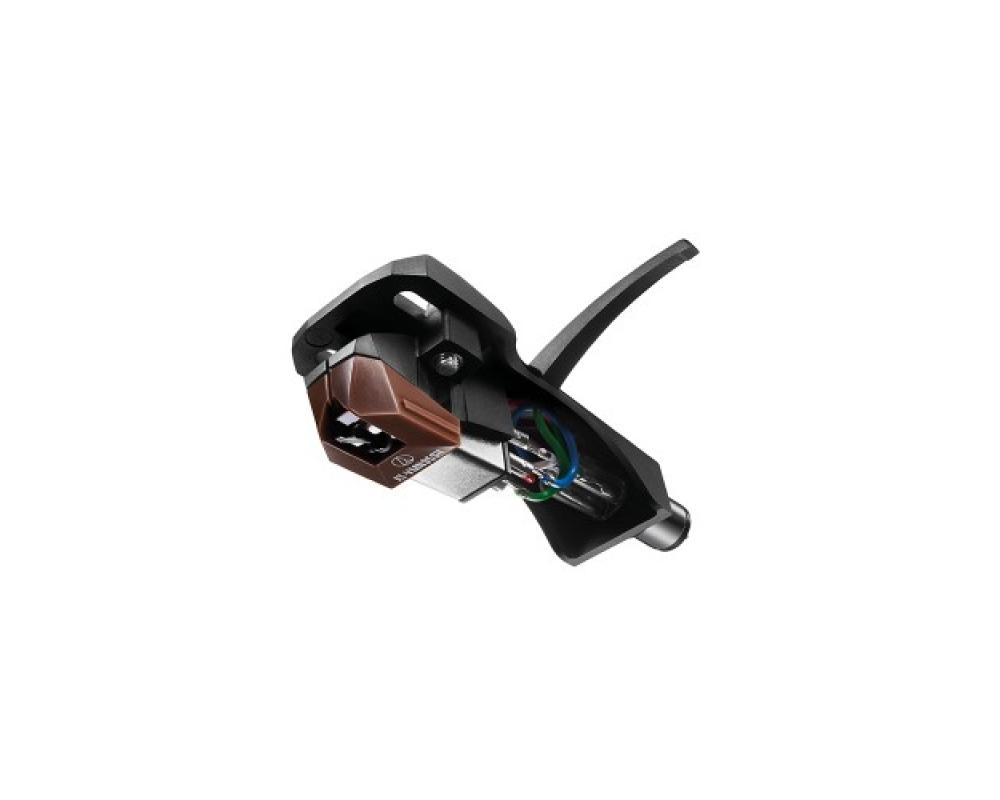

Audio-Technica AT-VM95SH/H

VM95 Series - Styli compatibility

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

Type VM Stereo Dual Magnet Mounting 1/2” centres Frequency Response 20 - 25,000 Hz Channel Separation 23 dB (1 kHz) Output Channel Balance 1.5 dB (1 kHz) Output Voltage 3.5 mV (@ 1 kHz, 5 cm/sec) Vertical Tracking Angle 23° Vertical Tracking Force Range 1.8 - 2.2g (standard 2.0 g) Stylus Shape Shibata
Stylus Size 2.7 x 0.26mil Stylus Construction Nude Square Shank Cantilever Aluminium Pipe Coil Impedance 3.3 kΩ (1 kHz) Coil Inductance 550 mH (1 kHz) DC Resistance 485 Ω Static Compliance 20 x 10 – 6 cm / dyne Dynamic Compliance 10 x 10 – 6 cm / dyne (100 Hz) Wire Used for Coil T.P. Copper Recommended Load Impedance 47,000 Ω Recommended Load Capacitance 100-200 pF Weight 15.5 g Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm) Replacement Stylus AT-VMN95SH
