Audio-Technica AT-VM95SP/H

  O kit combinado AT-VM95SP / H inclui o cartucho magnético duplo AT-VM95SP pré-montado no cabeçote AT-HS6BK. &nbs...

AT-VM95SP/H

VM95 series 78rpm SP cartridge on AT-HS6 Headshell

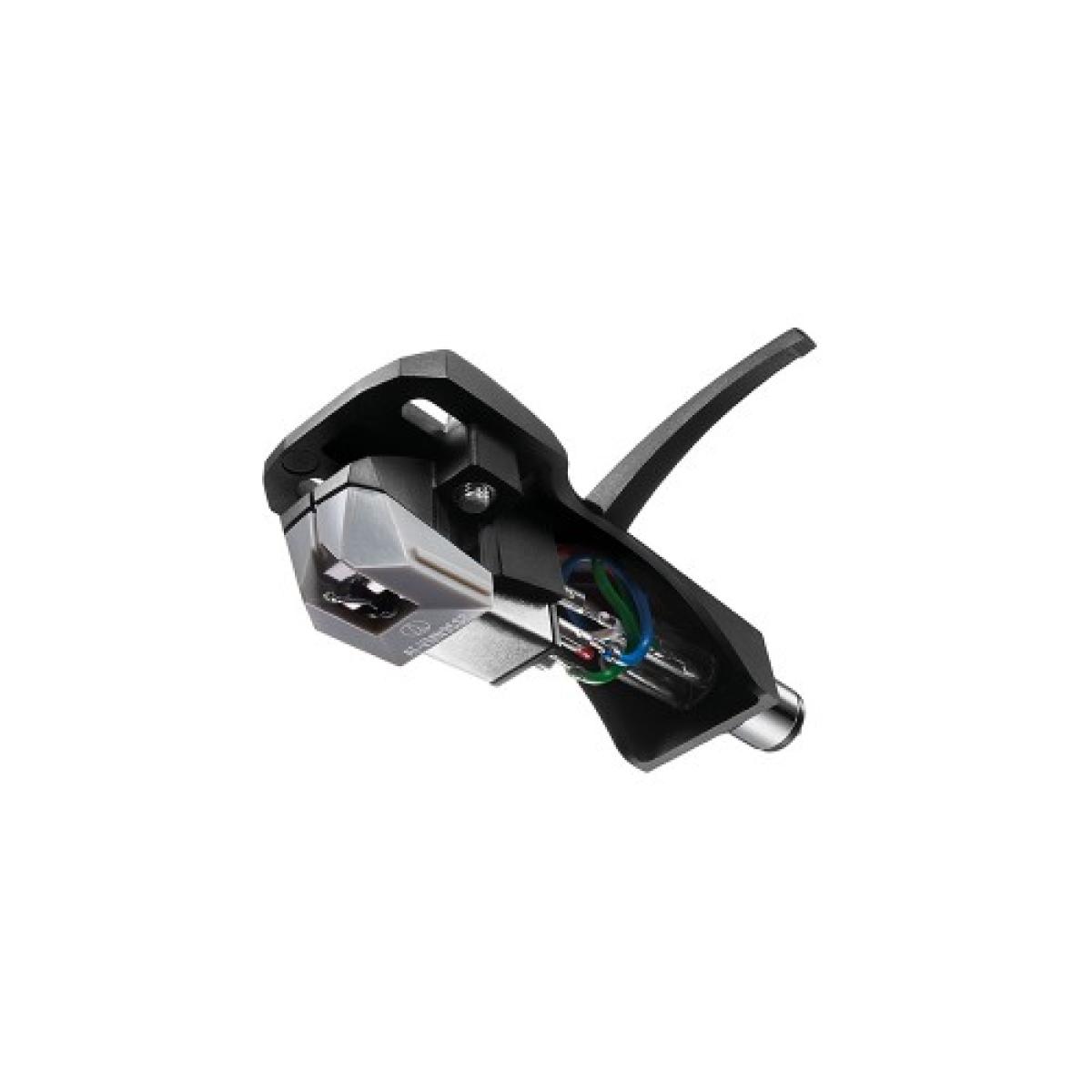

• AT-VM95SP mounted on AT-HS6BK headshell
• The total set weight is 15.5g
• Assembled and tested in the Audio-Technica Factory in Fukui-Japan

Every cartridge diamond stylus becomes worn after a period of play.

Around 500 hours for a conical stylus, 300 hours for an Elliptical stylus, 1000 hours for a Microlinear stylus, and 800 hours for a Shibata stylus.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

The six models of VM95 Series cartridges all use the same electromagnetic engine-body, therefore each of the six replacement styli are perfectly compatible.

Model AT-VM95SP/H

Type VM Stereo Dual Magnet

Mounting 1/2” centres

Frequency Response 20 - 20,000 Hz

Output Channel Balance 1.5 dB (1 kHz)

Output Voltage 2.7 mV (@ 1 kHz, 5 cm/sec)

Vertical Tracking Angle 23°

Vertical Tracking Force Range 4.5 - 5.5g (standard 5.0g)

Stylus Shape SP 3 mil Conical Bonded

Stylus Size 3 mil

Stylus Construction Bonded Round Shank

Cantilever Aluminium Pipe

Coil Impedance 3.3 kΩ (1 kHz)

Coil Inductance 550 mH (1 kHz)

DC Resistance 485 Ω

Static Compliance 12 x 10 – 6 cm / dyne

Dynamic Compliance 2 x 10 – 6 cm / dyne (100 Hz)

Wire Used for Coil T.P. Copper

Recommended Load Impedance 47,000 Ω

Recommended Load Capacitance 100-200 pF

Weight 15.5 g

Dimensions 21.2 × 21.4 × 62.4 ( H x W x D mm)

Replacement Stylus AT-VMN95SP
