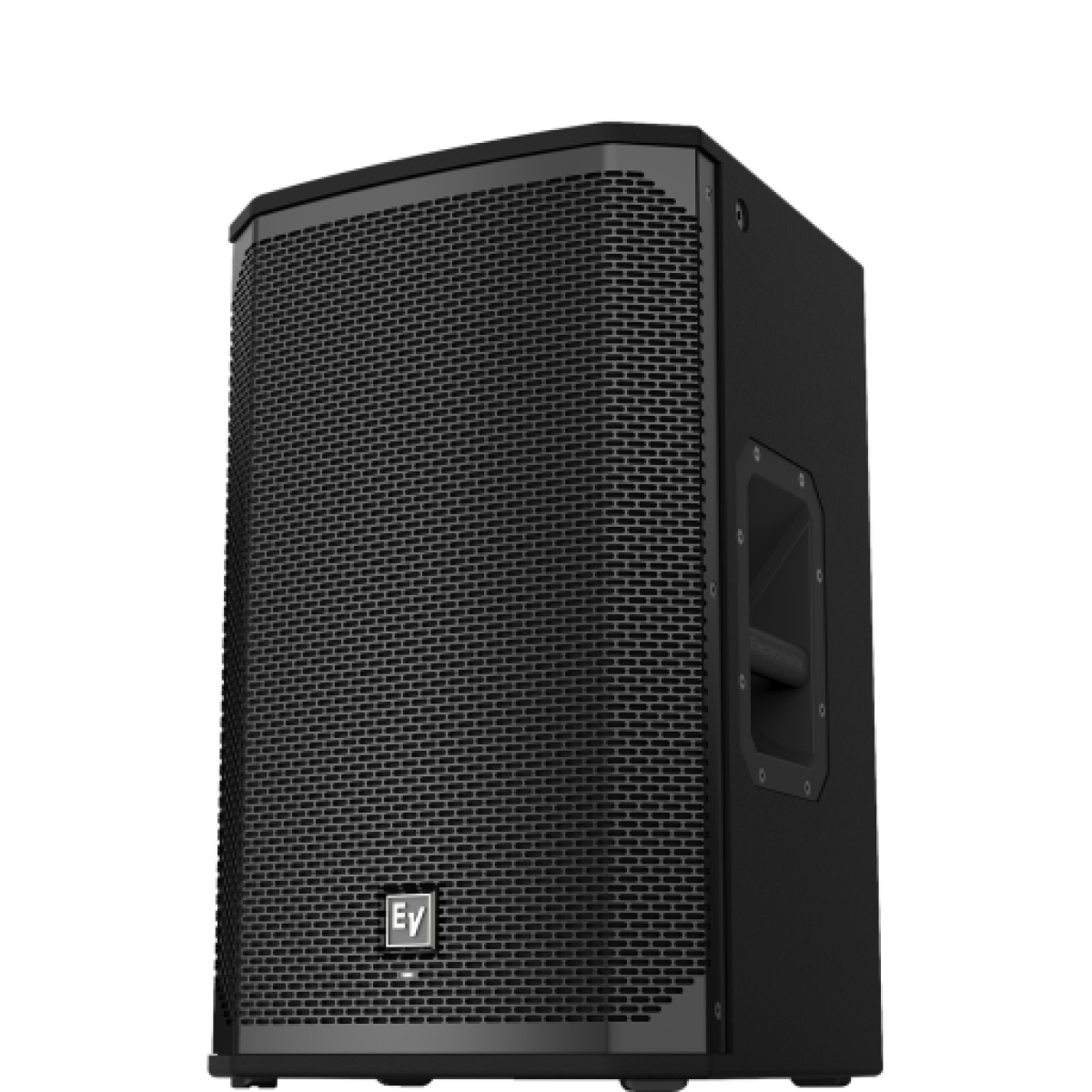

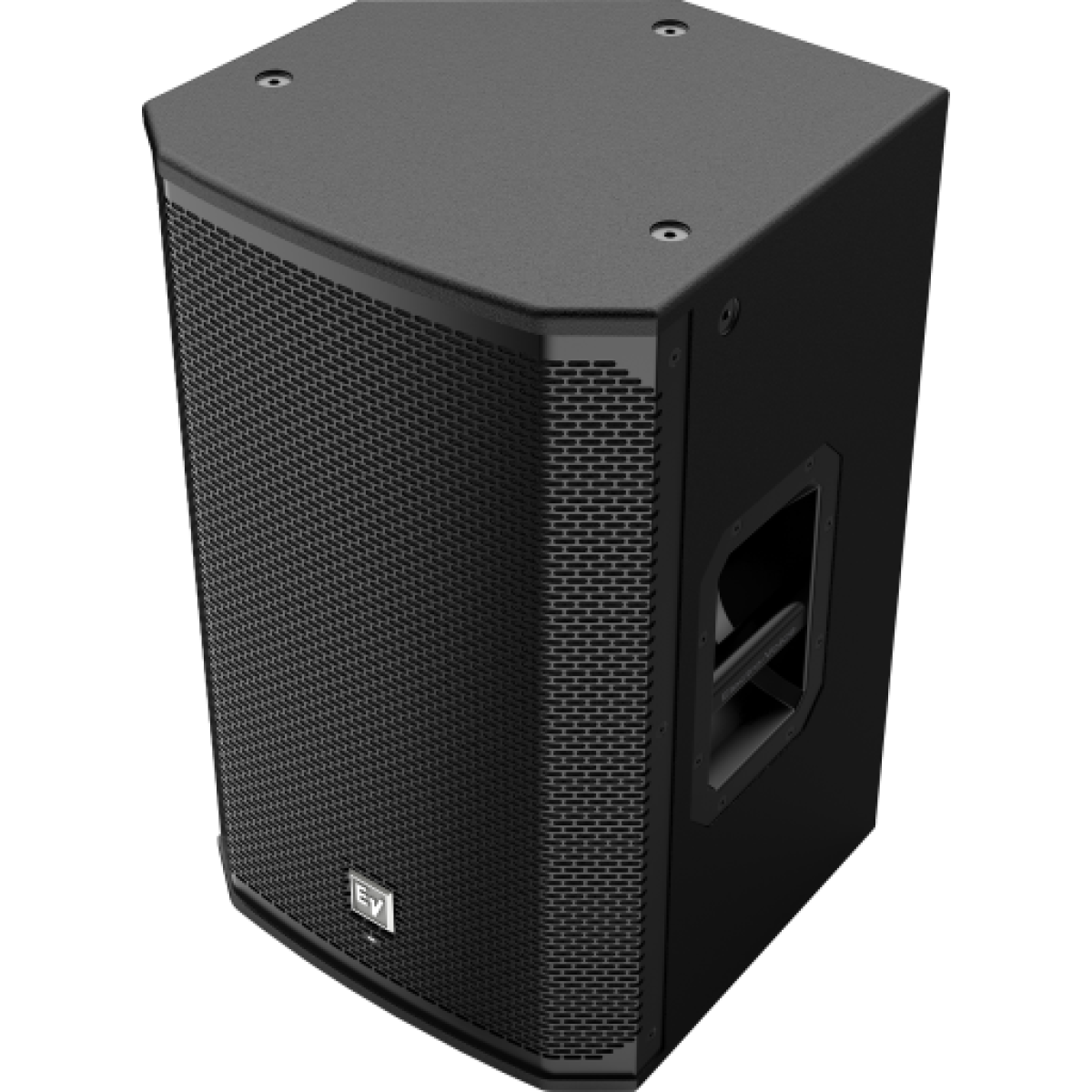

EKX-12
12" Passive Loudspeaker
- EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.

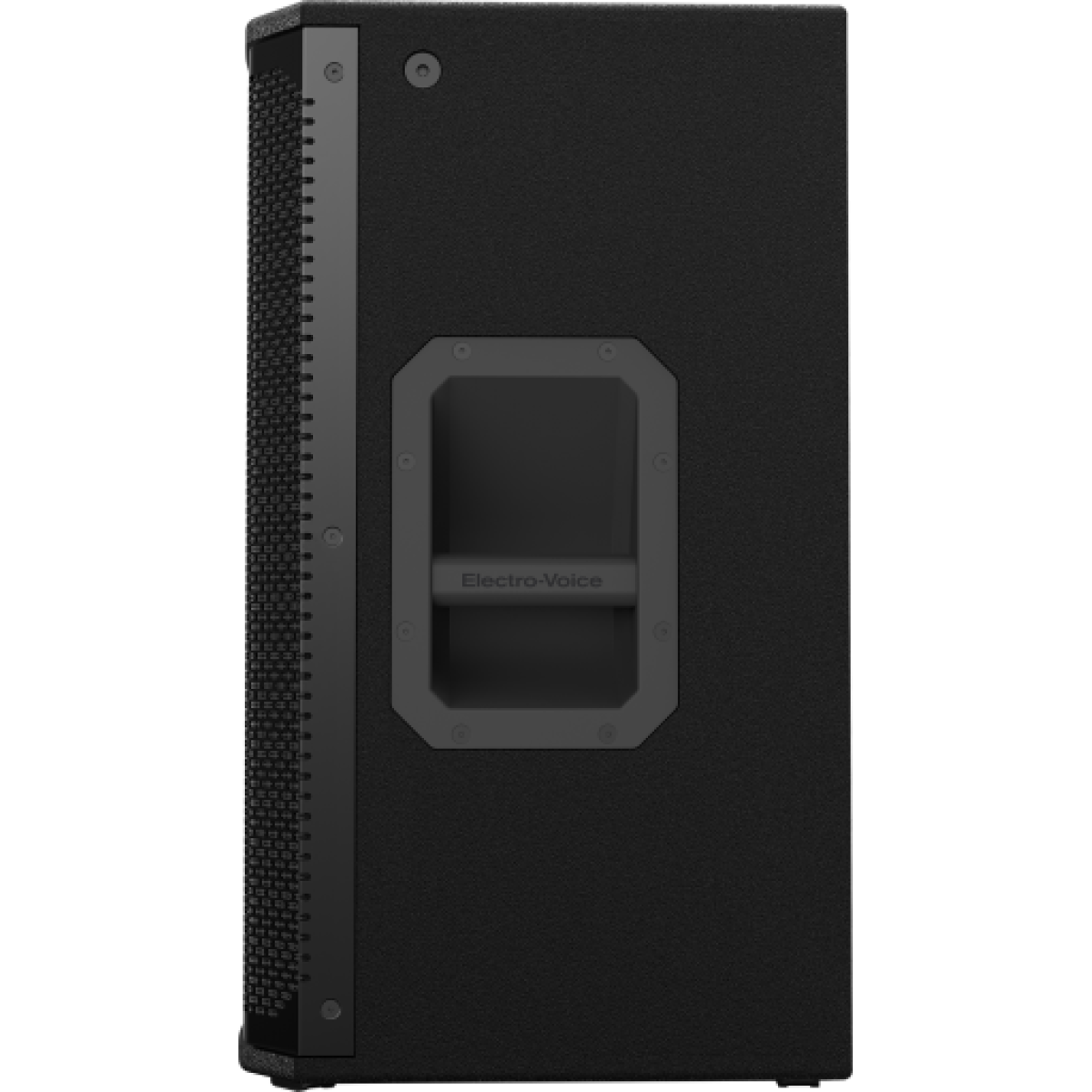

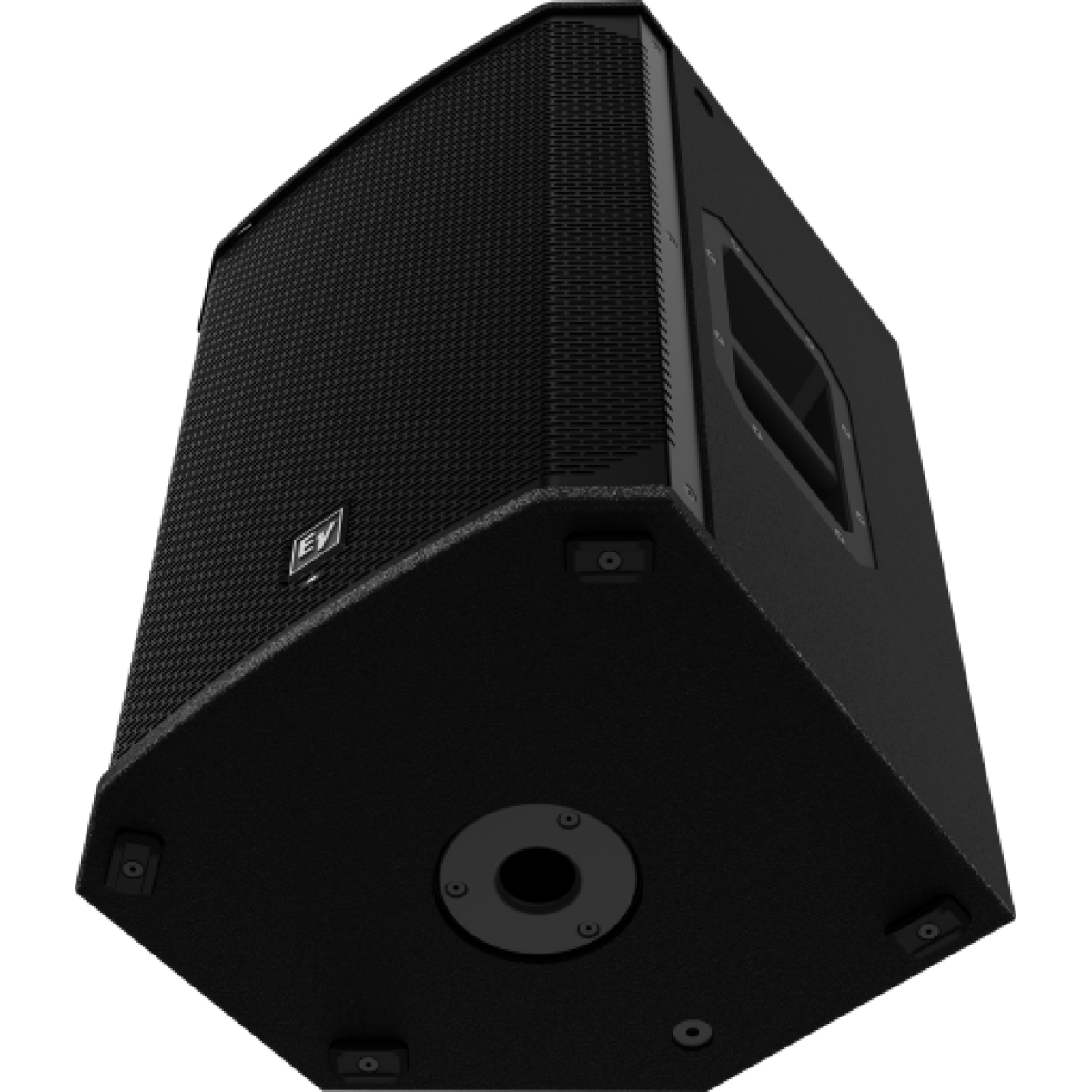

- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.
Axial Sensitivity (SPL, 1 W @ 1 m) | 95dB |
Connector Type | Dual NL4 |
Coverage (Nominal -6 dB) H | 90° |
Crossover Frequency | 1.6 kHz |
Depth | 356mm (14") |
Enclosure Material | 15 mm, plywood with EVCoat |
Family | EKX |
Frequency Response (-10 dB) | 55 Hz - 20 kHz (Full Space Measurement) |
Frequency Response (-3 dB) | 82 Hz - 18 kHz (Full Space Measurement) |
Grille | 18 AWG steel with powdercoat |
Height | 607mm (23.9") |
HF Transducer | DH-1M 1-inch titanium compression driver |
LF Transducer | EVS-12M 300 mm (12 in) |
Max. SPL/1m (calc) | 131dB |
Maximum SPL | 131dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating) |
Minimum Impedance | 7.5Ω |
Nominal Impedance | 8Ω |
Passive Power Handling | 1400W peak |
Power Handling (Continuous / Peak) | 350 W/1400W |
Power Rating | 1400W |
Powered or Passive | Passive |
Recommended High-Pass Frequency | 55Hz |
Shipping Weight | 21.4kg (47.2 lbs) |
Speaker Type | Full-Range, two-way |
Suspension | (8) M10 threaded mounting points |
Weight Net | 17.4kg (38.4 lbs) |
Width | 375mm (14.8") |
Woofer Size | 12inch |
- 599.00€
-
599.00€
