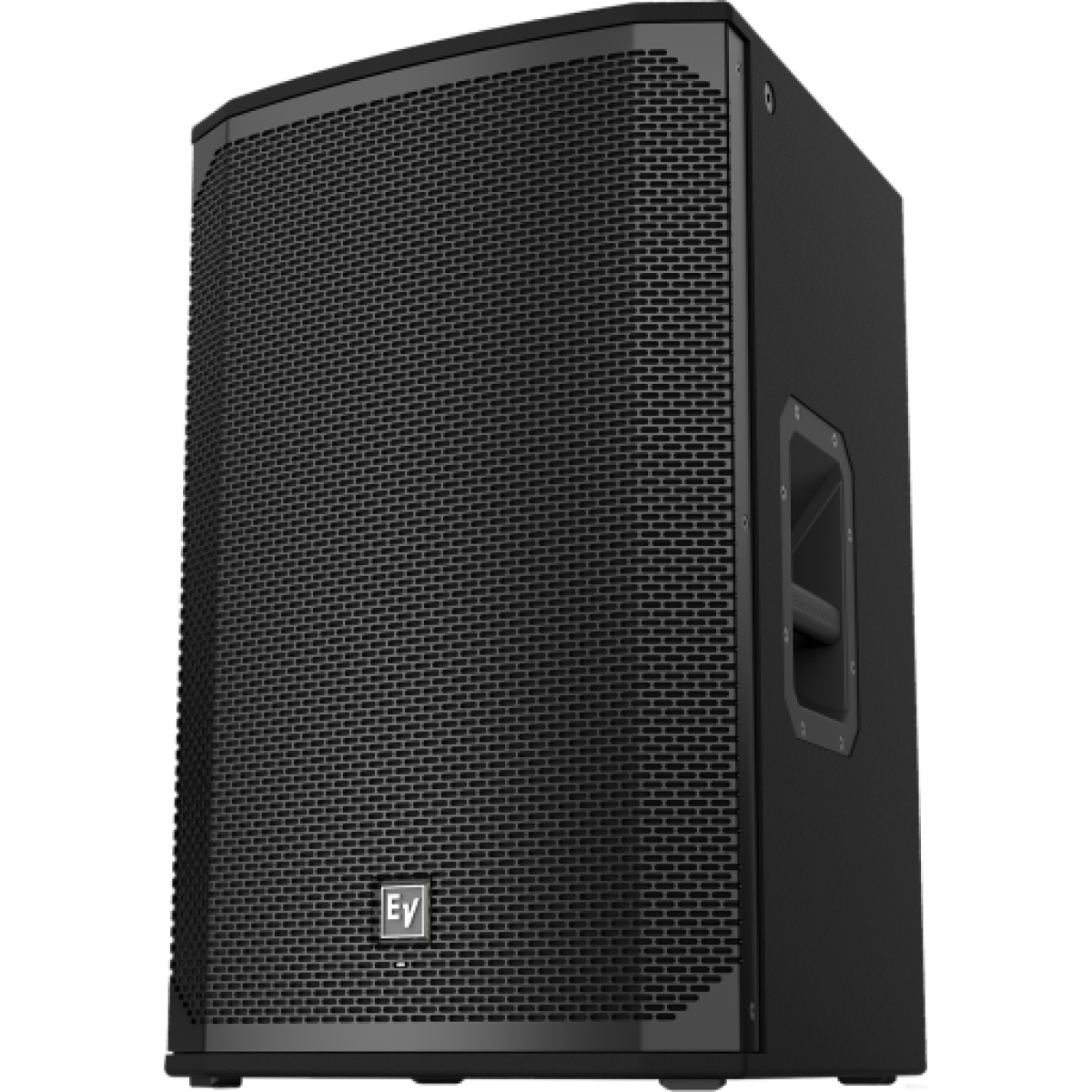

EKX-15
15" Passive Loudspeaker
- EKX-15: 1600 W (peak), 132 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducers™ (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.
Axial Sensitivity (SPL, 1 W @ 1 m) | 96dB (Full Space Measurement) |
Connector Type | Dual NL4 |
Coverage (Nominal -6 dB) H | 90° |
Coverage (Nominal -6 dB) V | 60° |
Crossover Frequency | 1.6 kHz |
Depth | 429mm (16.9") |
Enclosure Material | 15 mm, plywood with EVCoat |
Family | EKX |
Frequency Response (-10 dB) | 50 Hz - 20 kHz (Full Space Measurement) |
Frequency Response (-3 dB) | 75 Hz - 18 kHz (Full Space Measurement) |
Grille | 18 AWG steel with powdercoat |
Height | 685mm (27") |
HF Transducer | DH-1M 1-inch titanium compression driver |
LF Transducer | EVS-15M 381 mm (15 in) |
Max. SPL/1m (calc) | 132dB |
Maximum SPL | 132dB (Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating) |
Minimum Impedance | 7.2Ω |
Nominal Impedance | 8Ω |
Passive Power Handling | 1600W peak |
Power Handling (Continuous / Peak) | 400 W/1600W |
Power Rating | 1600W |
Powered or Passive | Passive |
Recommended High-Pass Frequency | 50Hz |
Shipping Weight | 28.2kg (62.2 lbs) |
Speaker Type | Full-Range, two way |
Suspension | (8) M10 threaded mounting points |
Weight Net | 23.2kg (51.1 lbs) |
Width | 432mm (17") |
Woofer Size | 15inch |
- 698.00€
-
698.00€
