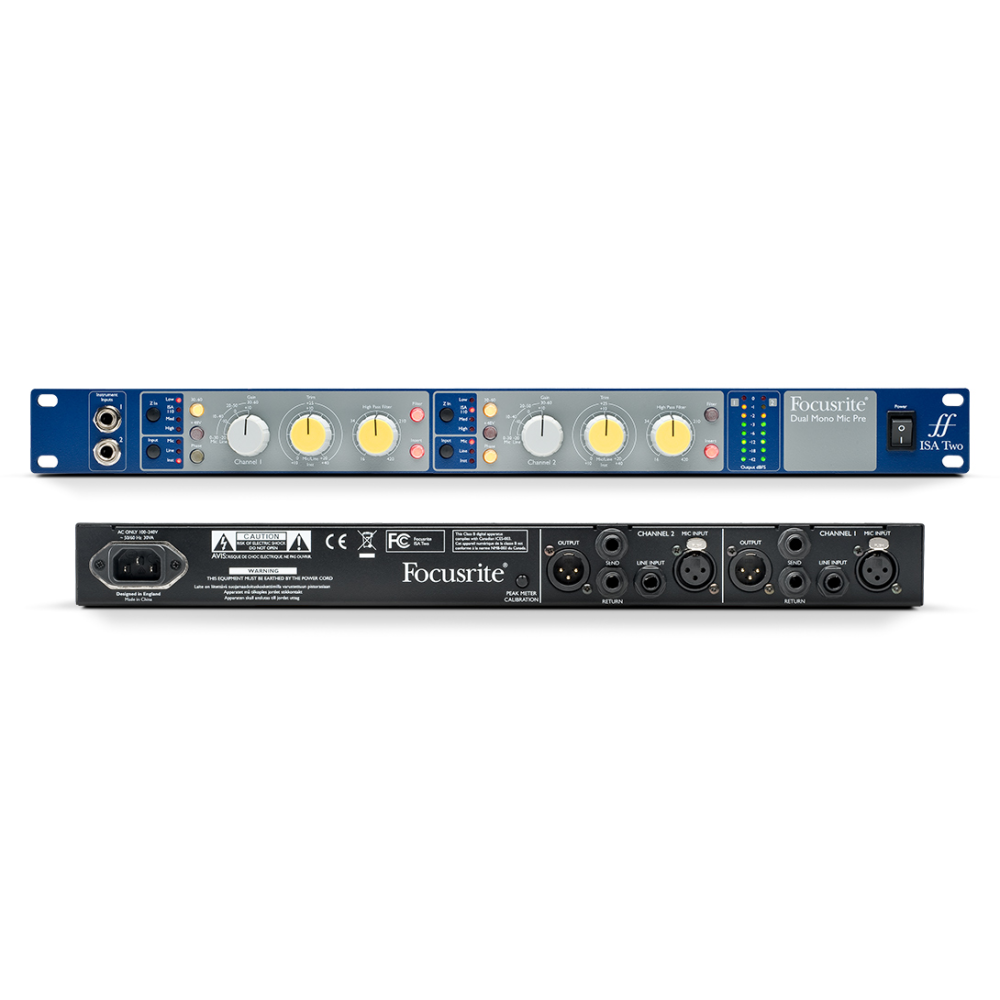

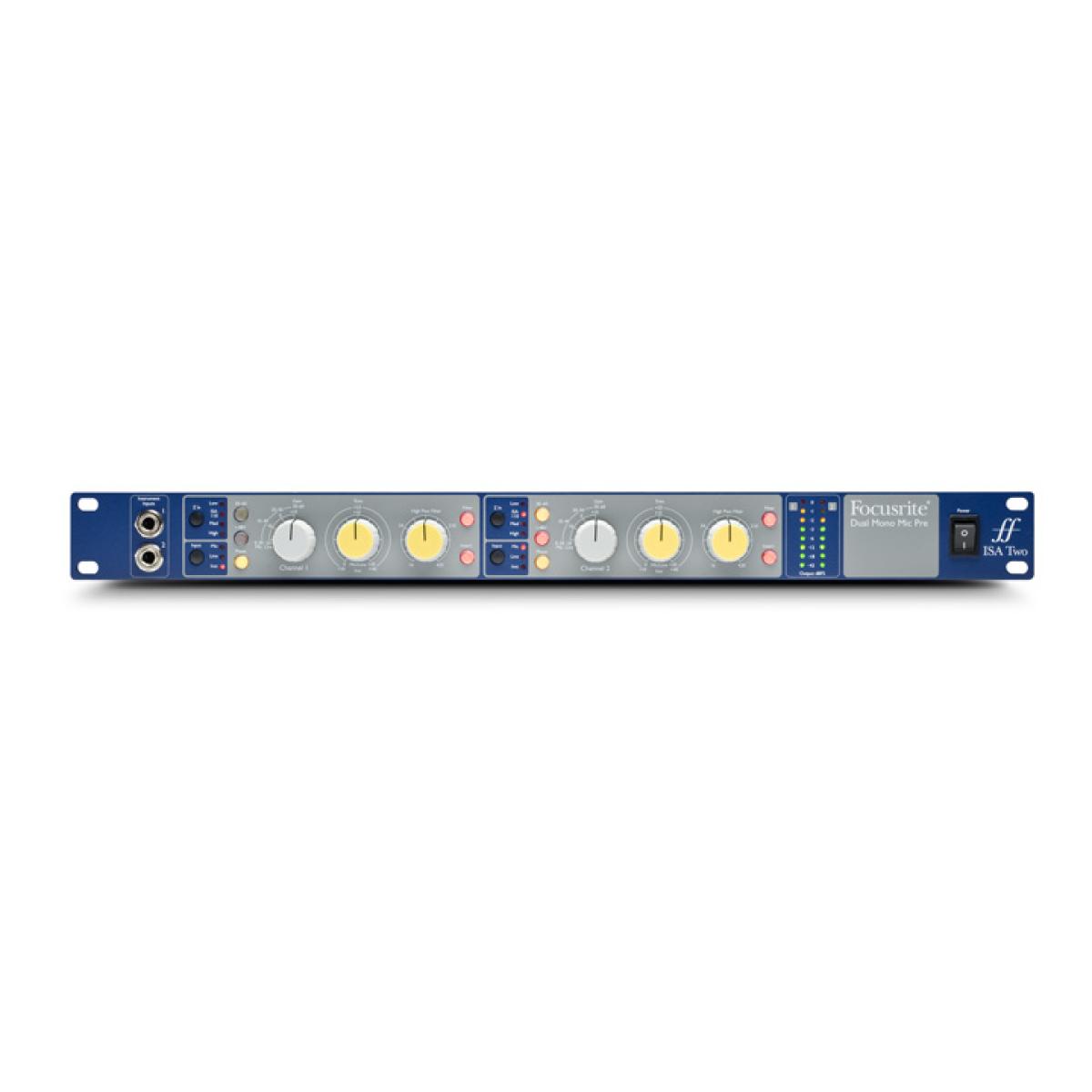

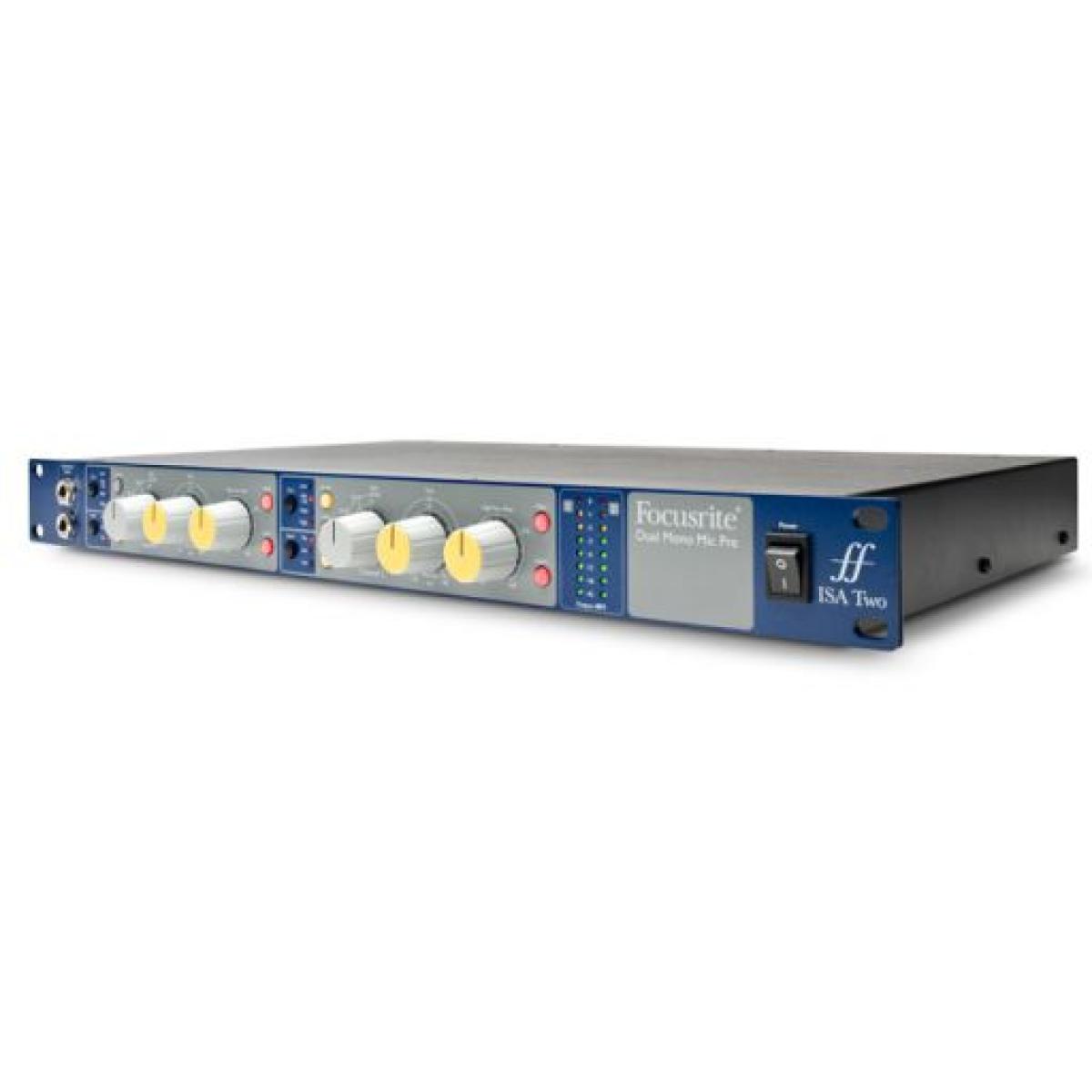

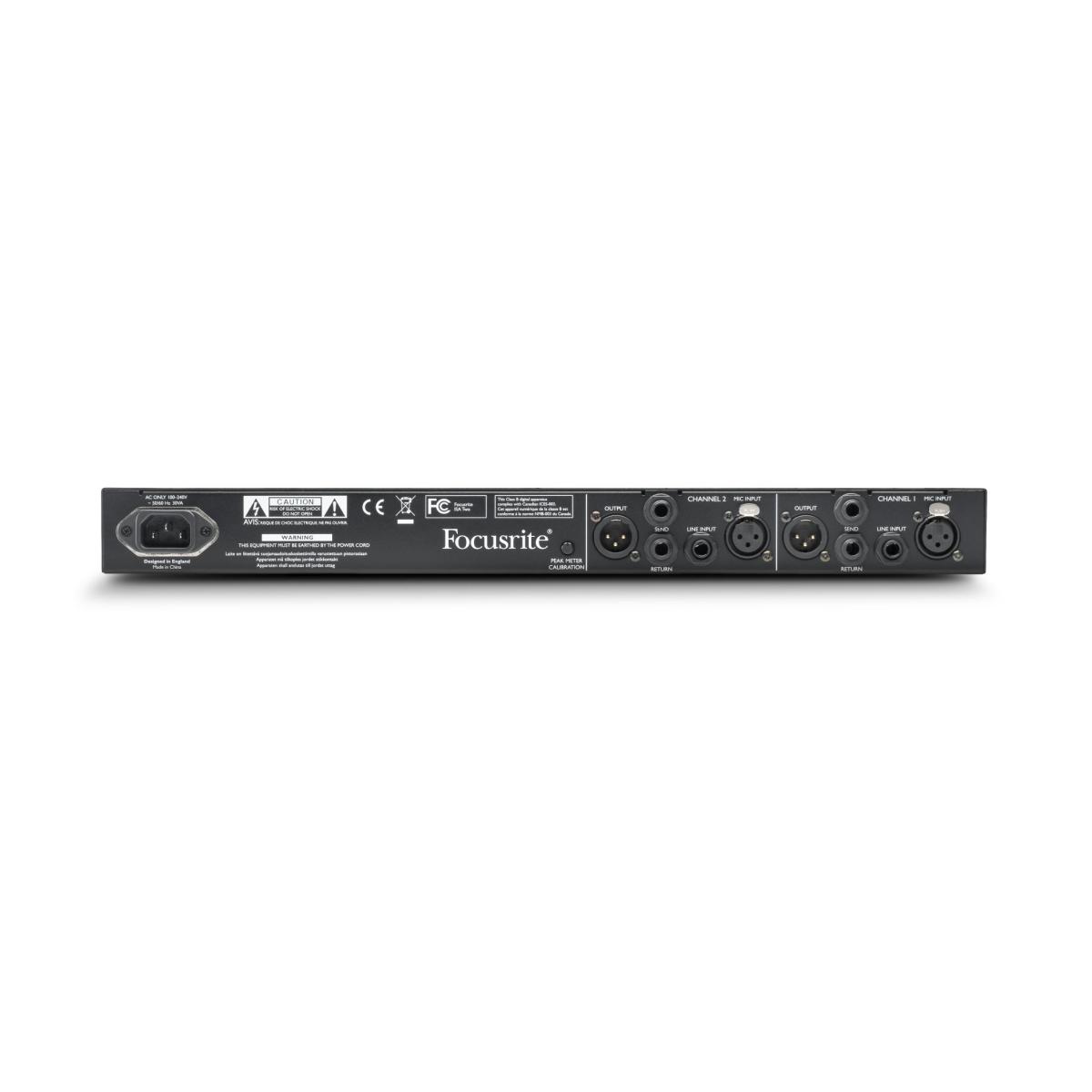

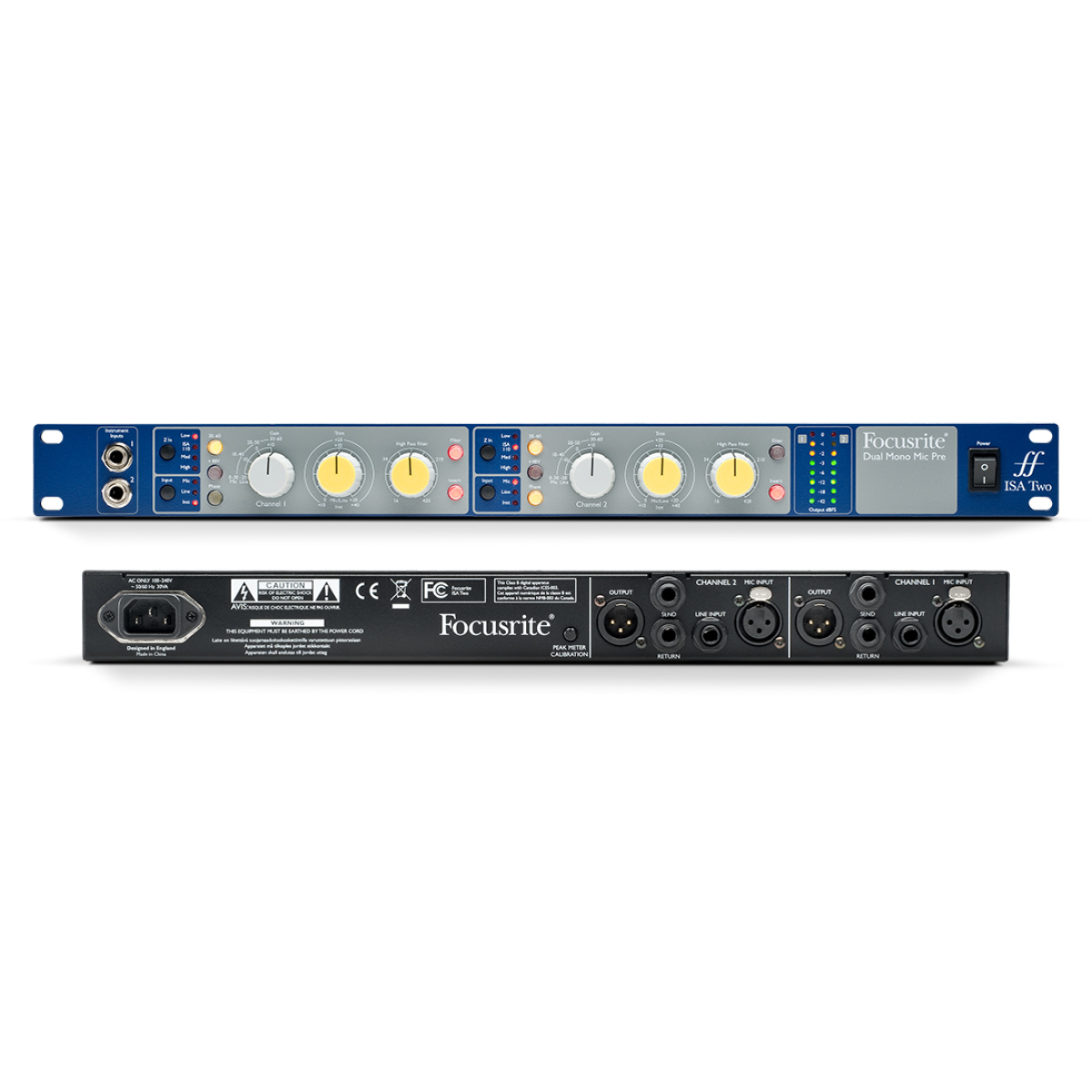

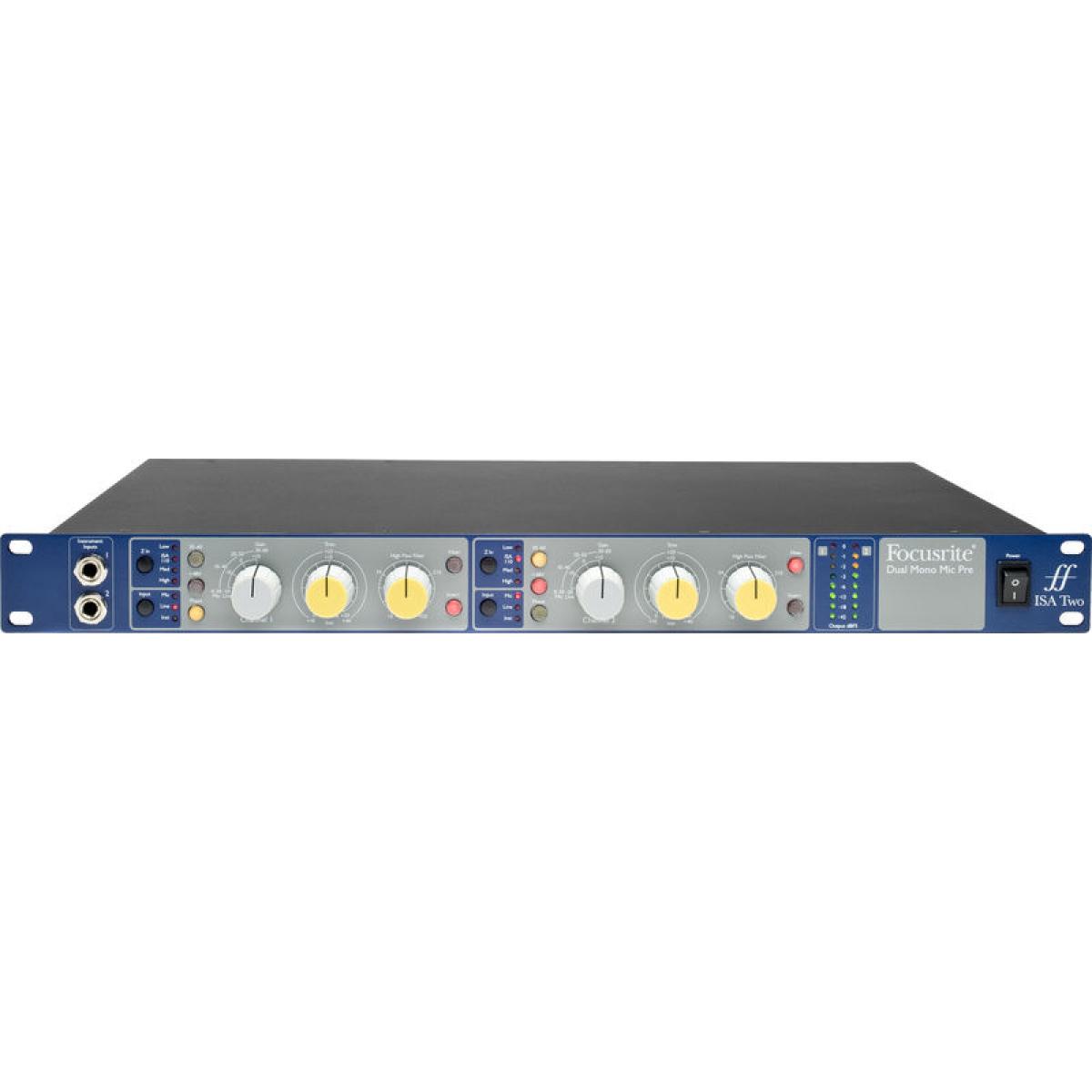

Focusrite ISA TWO

ID: 184246
|
Ref: ISATWO
Ver vídeo
Excelente serviço!!! Comprei uma Strat e em dois dias a encomenda chegou! Houve um problema com a morada e o apoio da Bimotor foi rápido a resolver a situação. O instrumento veio impecável, nem precisou de ajustes
Pré-amplificadores
Focusrite ISA TWO

Focusrite ISA Two Pre-Amp Lundahl LL1538 de Transformador 2 canais independentes Impedância Variável Até 80 dbs de ganho Filtro High pass variável

Mic Input Response


Gain range (Mic)

0 dB to 60 dB in 10 dB steps, plus 0 dB to 20 dB continuously variable trim

EIN (Mic)

Measured at 60 dB of gain with 150 O source impedance and 22 Hz-22 kHz band pass filter -127 dB

Noise (Mic)

Noise at output with unity gain (0 dB) and 22 Hz-22 kHz band pass filter -97 dBu

Frequency Response (Mic)

At minimum gain (0 dB)-0.5 dB at 10 Hz,?-1 dB at 135 kHz, relative to 1 kHz

At 60 dB gain (Mic)

-6 dB at 10 Hz, -1 dB at 115 kHz, relative to 1 kHz

Crosstalk Channel to Channel (Mic)

Mic input, with I/P = 0 dBu, gain = 0 dB @ 1 kHz input to channel A, channel B output = -85 dB

test54654654654

test+O

Line Input Response


Gain range (Line)

-20 dB to 10 dB in 10 dB steps, plus 0 dB to 20 dB continuously variable trim

Input Impedance (Line)

10 kO from 10 Hz to 200 kHz

Frequency Response (Line)

At minimum gain (0 dB)-0.3 dB at 10 Hz, -1 dB at 80 kHz, relative to 1 kHz

Crosstalk Channel to Channel (Line)

Line input, with I/P = 0 dBu, gain = 0dB @ 1 kHz input to channel AChannel B output?= -91 dB

Instrument Input Response


Gain range (Instrument)

10 dB to 40 dB continuously variable trim

Input Impedance (Instrument)

2 MO

Noise (Instrument)

Measured with 22 Hz-22 kHz band pass filterMinimum gain ( 10 dB) = -95 dBu

Frequency Response (Instrument)

At minimum gain ( 10 dB)-0.1 dB at 10 Hz,?-1 dB at 115 kHz, relative to 1 kHz

At maximum gain ( 40 dB) (Instrument)

-2.5 dB at 10 Hz, ?-1 dB at 110 kHz, relative to 1 kHz

High-Pass Filter


Roll-Off

18 dB per octave (3 pole filter)

Frequency Range

Continuously variable from 16 Hz to 420 Hz (-3 dB)

Weight and Dimensions


W x D x H

480 mm x 280 mm x 44 mm

Weight

3.7 kg
