Art System VIDEO 909

ID: 188300
|
Ref: LYVIDEO909
BimotorDJ.com
Processamento video

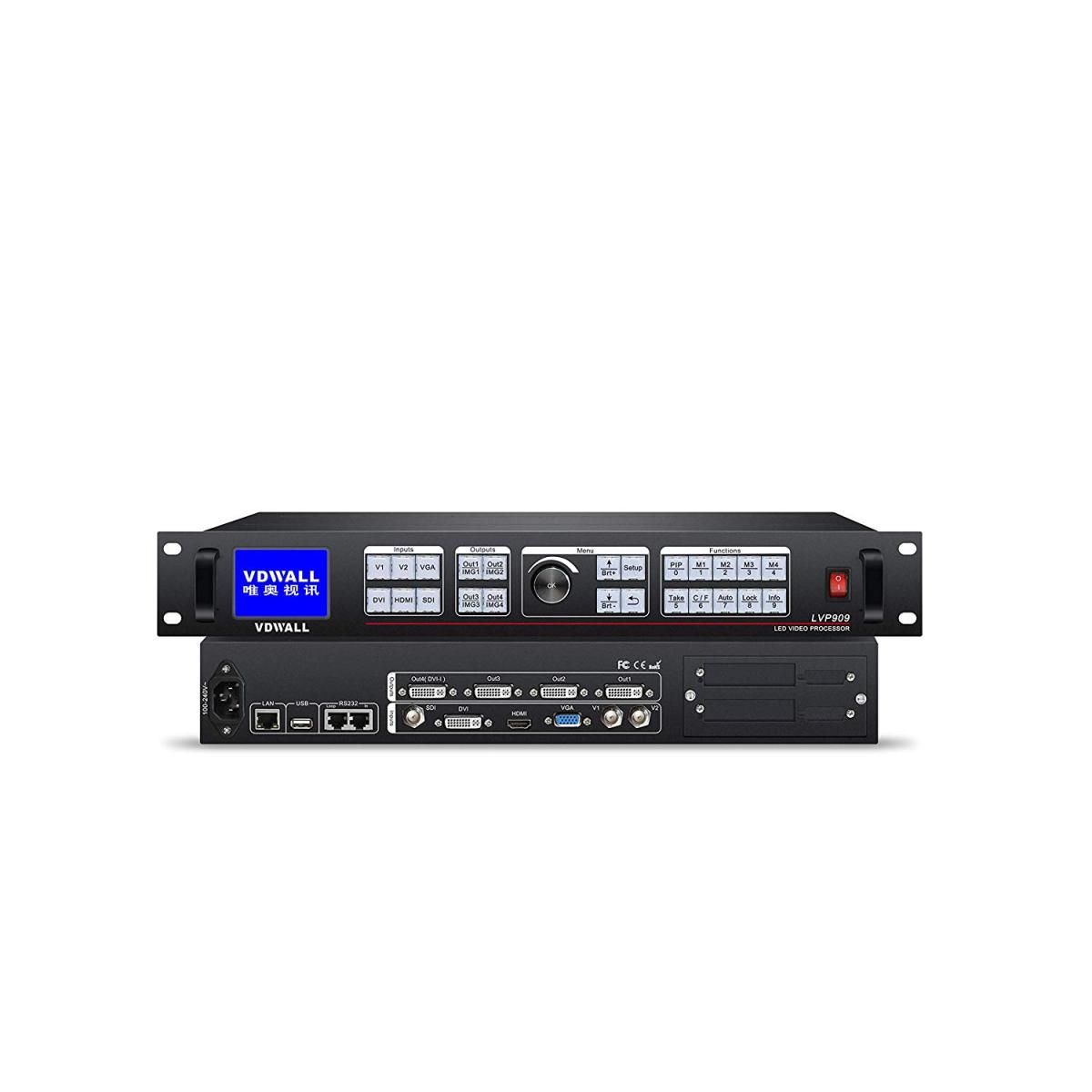

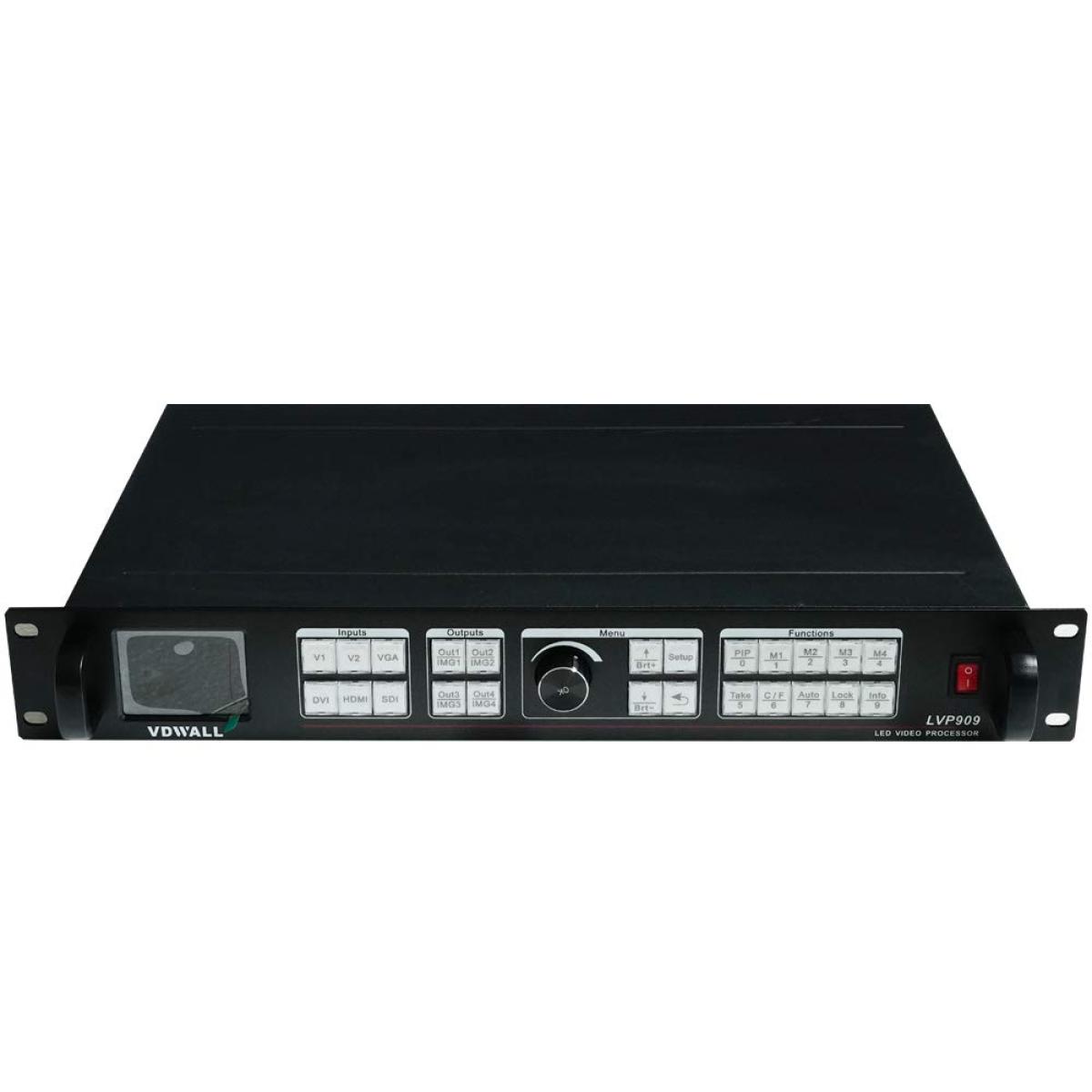

Art System VIDEO 909

1. Seamless switching,  Fade-in / Fade-out and wipe switching between any input signals. Multiple mixed analog
     and digital inputs including 2xVideo, 1xVGA, 1xHDMI, 1xDVI, 1xSDI / HD-SDI / 3G-SDI

2. "TAKE" fast switching

3. Four sets of preset PIP display mode: seamless or fade-in / fade-out between modes switching

4. 4 windows in any size and overlay display. Display 4 input signals picture at the same time. Each picture size,
     position and overlay order are adjustable

5. Max output resolution 3840x2400_60Hz. Outputs: 4 x DVI, 1 x VGA. Each DVI port can output max
     1920x1200_60Hz

6. Preview monitor + Sync monitor

7. Wi-Fi wireless control + Wi-Fi video feedback monitor: Wi-Fi video feedback function is realized through installing
     APP software in handheld device to monitor input signals. Meanwhile, wireless Wi-Fi controls the device to
     switch signals and call modes


VDWALL LVP909 Video Processor Specifications:



Inputs

Number / Type

2×Video

1×VGA(RGBHV)

1×DVI(VESA / CEA-861)

1×HDMI(VESA / CEA-861)

1×SDI / HD-SDI / 3G-SDI

Video system

PAL / NTSC

Composite Video Amplitude Impedance

1V(p_p)/ 75Ω

VGA format

PC(VESA standard)

≤2048×1152_60Hz

VGA Amplitude Impedance

R、G、B = 0.7 V(p_p)/ 75Ω

DVI format

PC(VESA standard)

≤1920×1200_60Hz

HDMI1.3(CEA-861)

HDMI format

PC(VESA standard)

≤1920×1200_60Hz

HDMI1.3(CEA-861)

SDI format

SMPTE259M-C

SMPTE 292M

SMPTE 274M/296M

SMPTE 424M/425M

480i_60Hz

576i_50Hz

720p、1080i、1080p

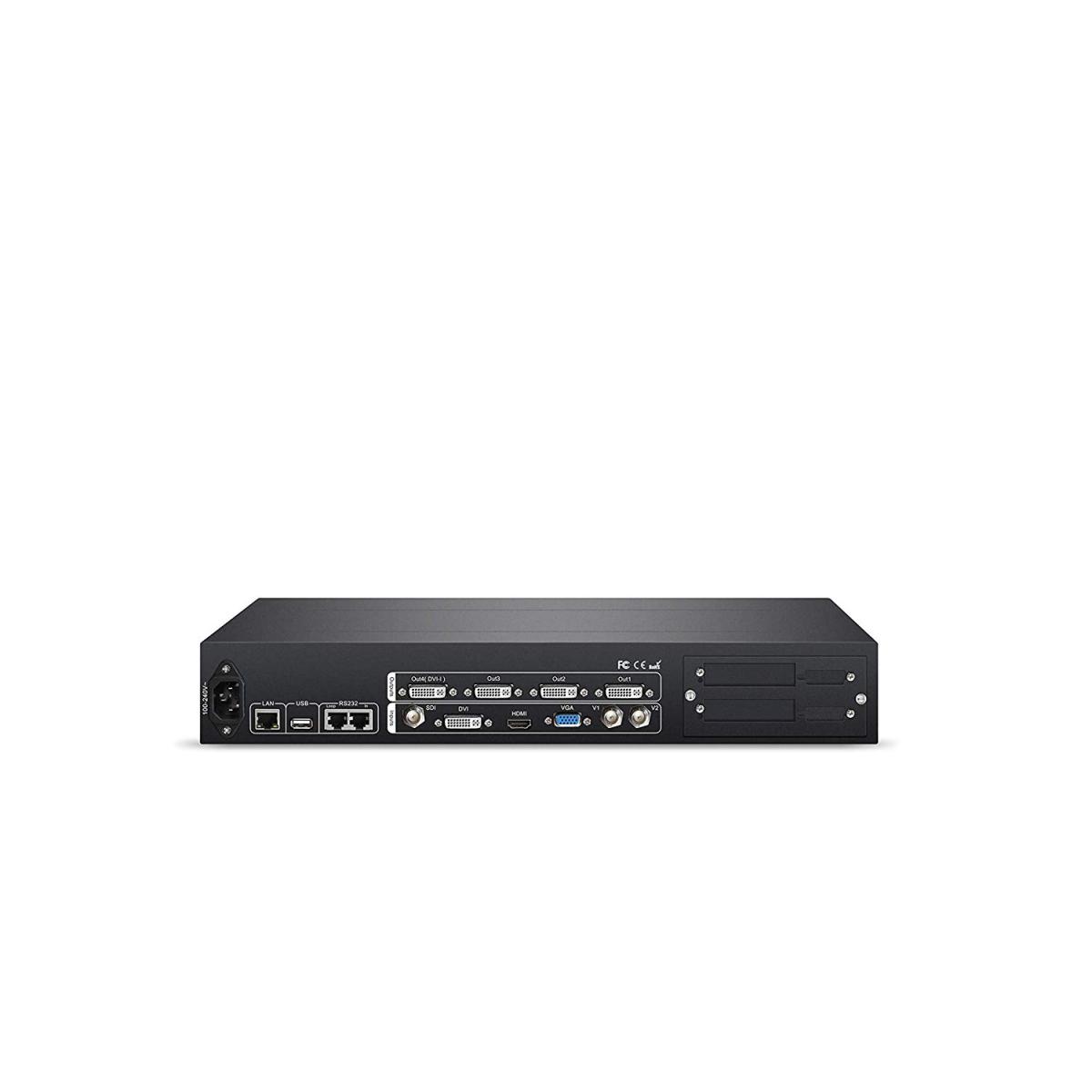

Input connectors

Video:BNC

VGA:15pin D_Sub( female)

DVI:24+1 DVI_D

SDI:BNC/ 75Ω

HDMI:HDMI port A type

Outputs

Number / Type

4×DVI, 1×VGA(RGBHV)(Out4)

VGA / DVI format

1024×768_60Hz

1280×1024_60Hz

1440x1440_60Hz

1920×1080p_50Hz/60Hz

1920×1200_60Hz

Output connectors

DVI OUT:24+5 DVI_I

Others

Control port

RS232 / USB / LAN / Wi-Fi

input voltage

100-240VAC  50/60Hz

Power consumption

≤45W

Environment Temperature

0-45 ℃

Environment Humidity

15-85%

Product Size

483(L) x 274(W) x 66.6(H)mm

Package Size

520(L) x 350(W) x 130(H)mm

Net Weight

4.2Kg

Gross Weight

5.9Kg
