Ortofon Hifi MC Quintet Bronze

ID: 190042
|
Ref: MCQUINTETBRONZE
Não conhecia o site (inclusive fui pesquisar opiniões para saber se era seguro, dado ser uma encomenda de valor elevado). Liguei a pedir informações para saber se as cores do material que estava a encomendar combinavam, dado serem de marcas diferentes; fui logo atendido e responderam às minhas questões. Recebi a encomenda em ótimo estado à porta passado 1 dia e pouco. Pela única experiência que tive com esta empresa não poderia pedir melhor, nada falhou, bom trabalho.
Células

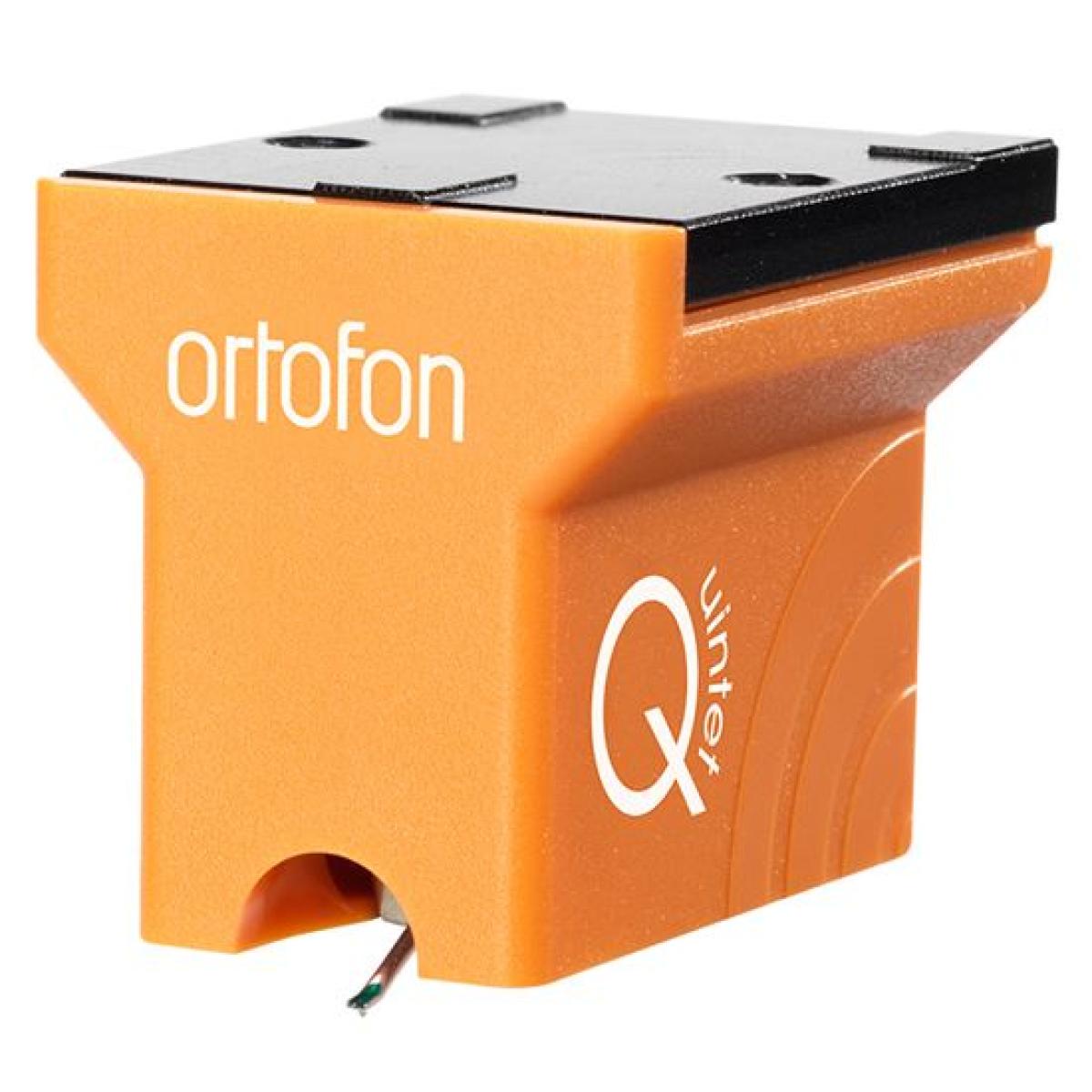

Ortofon Hifi MC Quintet Bronze

Ortofon DJ MC Quintet Bronze - Cabeça -

Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV

Channel balance at 1 kHz - < 1.2 dB

Channel separation at 1 kHz - > 23 dB

Channel separation at 15 kHz - > 15 dB

Frequency range at - 3dB - 20-25.000 Hz

Frequency response 20-20.000 Hz - +/-1.5 dB

Tracking ability at 315Hz at recommended tracking force *) - 80 µm

Compliance, dynamic, lateral - 15 µm/mN

Stylus type - Nude Fine Line

Stylus tip radius - r/R 8/40 µm

Tracking force range - 2.1-2.5 g (21-25 mN)

Tracking force, recommended - 2.3 g (23 mN)

Tracking angle - 20°

Internal impedance, DC resistance - 5 Ohm

Recommended load impedance - > 20 Ohm

Cartridge body material - ABS/Aluminium

Coil wire material - Pure 4-nines copper

Cartridge colour - Bronze

Cartridge weight - 9 gram

*) Typical value


Compatibility with Rega brand TT/TA:

REGA brand cartridges’ height from stylus tip to the top cartridge mounting surface is lower than standard. Therefore you would need spacers to ensure the correct set-up of the Ortofon cartridge. Please read about cartridge set-up and alignment on tonearm on our FAQ.

Adjusting the height of your Rega tonearm is easy with Acoustic Signature's Spacer Set. It allows you to adjust the height from 0.5 mm to 3.5 mm in precise steps of 0.5 mm - without removing the tone arm. Simply loosen the screws, insert the AS-spacer, then lock the screws back down, and you're tonearm is ready to play.

3.2 - 4 mm spacers should be enough for Quintet cartridge.
