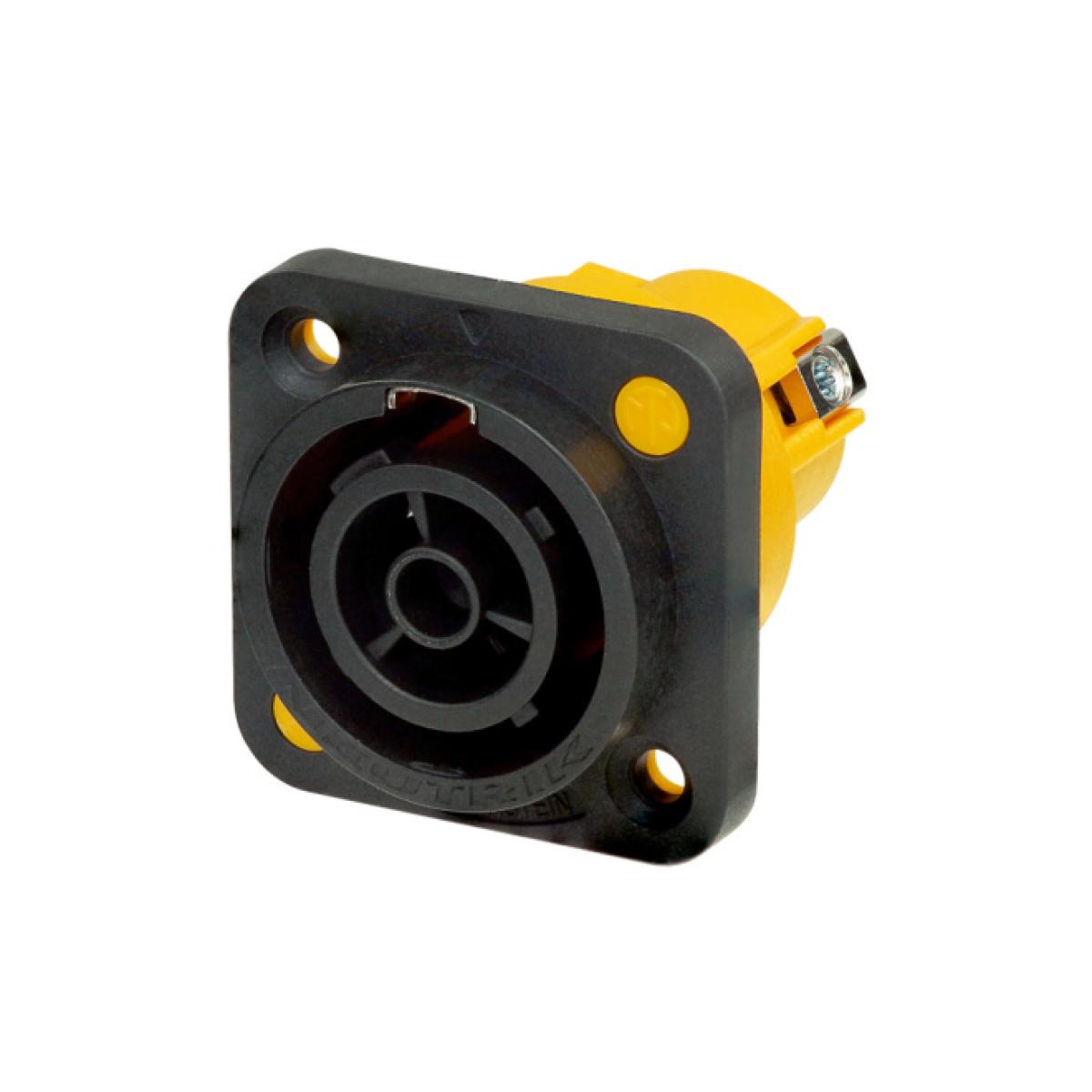

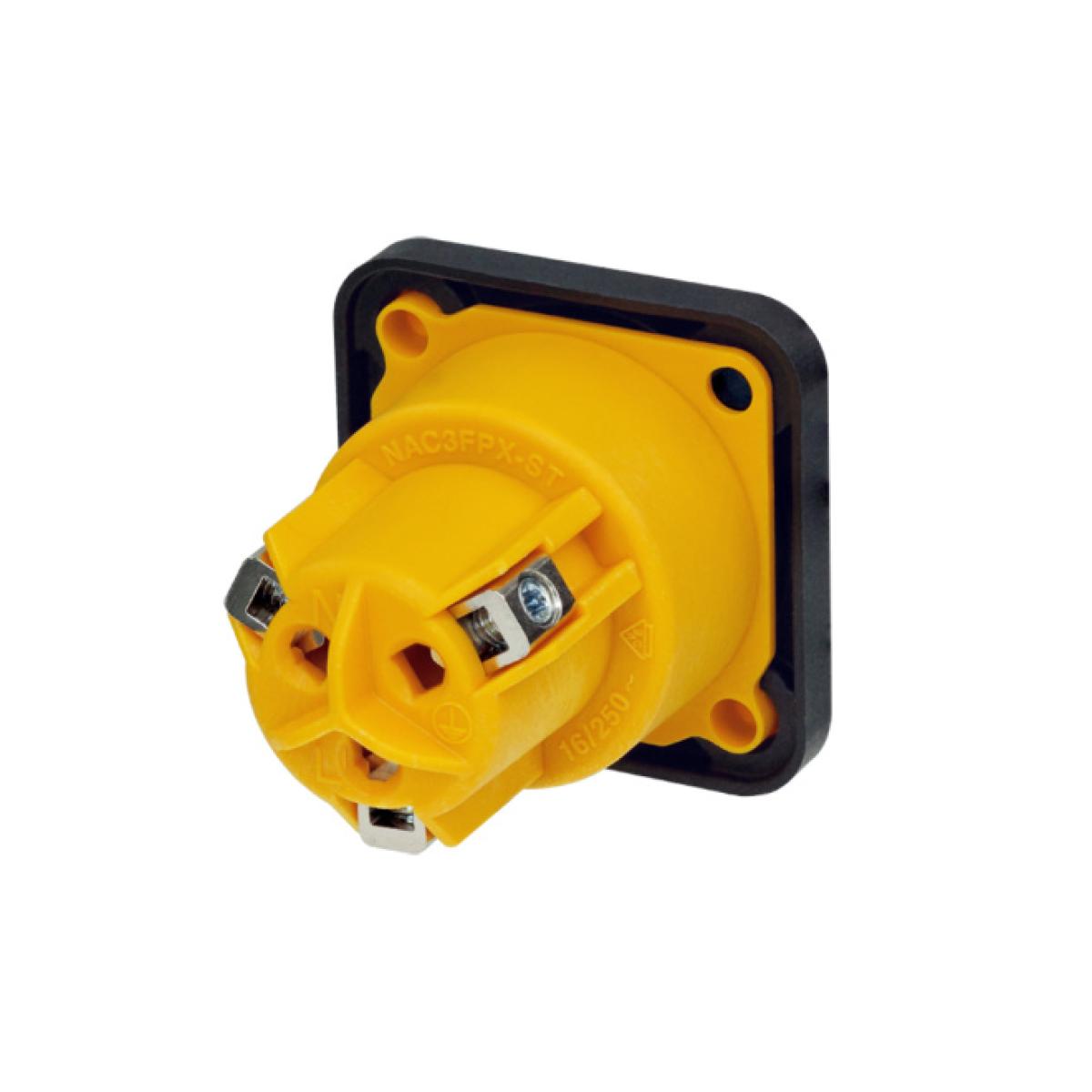

Neutrik NAC3 FPX-ST True1-Power Out, Power Twist Socket w/ Locking MechanIsm

ID: 186052
|
Ref: NAC3FPXST
|
Disponível desde: 2018-07-11
BimotorDJ.com
Corrente
Neutrik NAC3 FPX-ST True1-Power Out, Power Twist Socket w/ Locking MechanIsm
  • True mains connector with breaking capacity (CBC)
  • Lockable 16 A single phase connector (USA: 20 A)
  • Easy and reliable twist lock system
  • Extremely robust and reliable
  • ENEC certified according to IEC 60320
  • UL recognized components
  • IP65 ingress protection in mated condition and unmated in combination with SCNAC-FPX

Product

Title
NAC3FPX-ST

Electrical

Contact resistance
≤ 3 mΩ
Dielectric strength
4 kVdc / 2.8 kVac
Insulation resistance
> 0.1 GΩ (after damp heat test)
Number of electronical contacts
2 + PE
Rated current per contact
16 A rms (USA: 20 A)
Rated voltage
250 V ac

Mechanical

Lifetime
> 5000 mating cycles
Wiresize
2.5 mm²
Wiresize
14 AWG
Wiring
screw terminals

Material

Contact plating
2 µm Ag
Locking element
Stainless steel
Shell
Polyamide (PA 6.6)
Contacts
Spring Copper (CuSn0.2)

Environmental

Flammability
UL 94 V-0
Temperature range
- 30 °C - +80 °C
  • 8,75€

    IVA incluído.
Entrega estimada até 16 de maio.
Significa que não temos stock imediato, Se necessitar de uma previsão de entrega mais precisa , por favor consulte-nos: [email protected] ou (+351) 256 374 395
(chamada para a rede fixa nacional)
Não necessita de registo
Acresce 6,99€ de envio (IVA incluído)
Envio grátis acima de 199€
