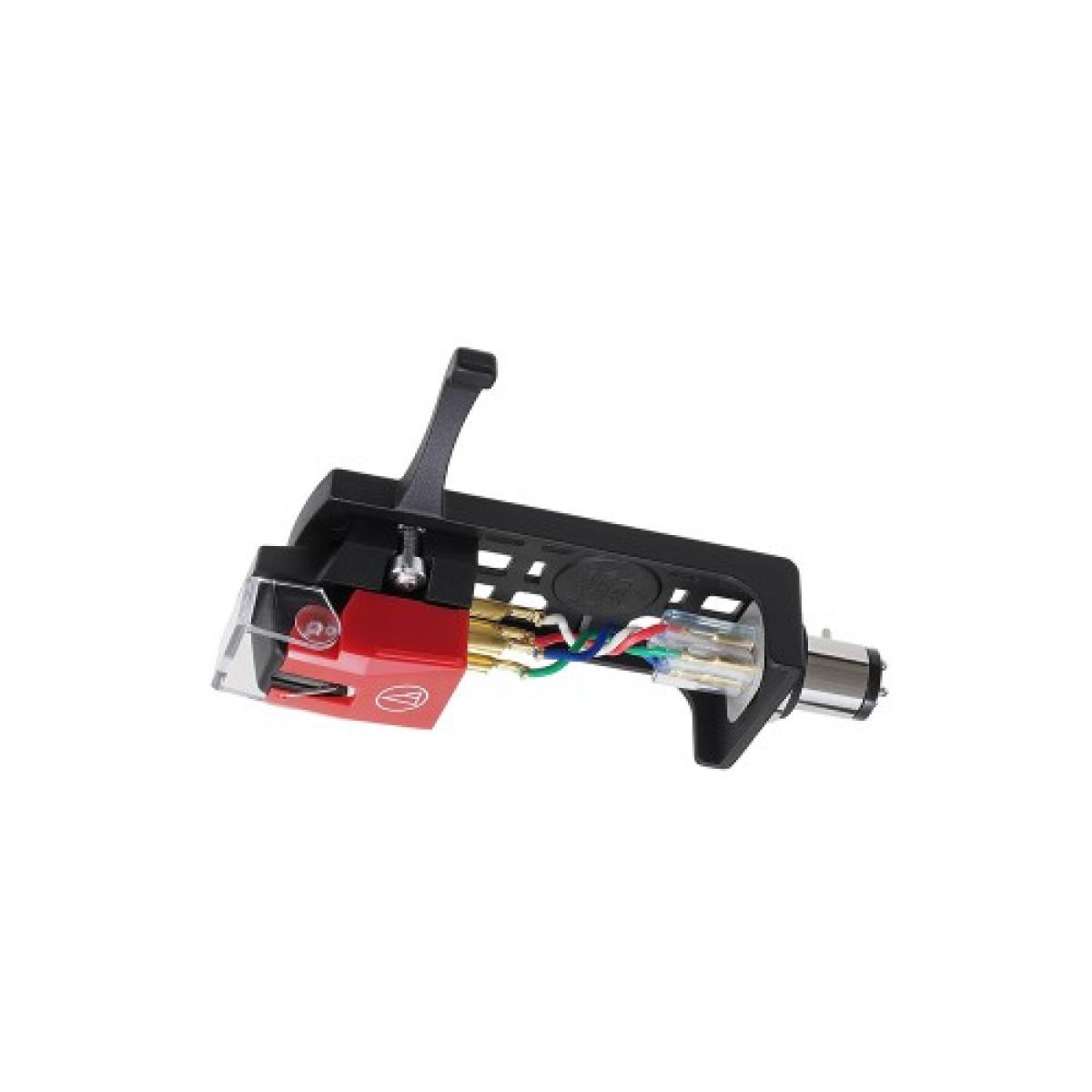

Audio-Technica VM540M/LH

VM540ML/H

Dual Moving Magnet Stereo Cartridge with Microlinear stylus and HS10 Headshell

• Microlinear profile diamond stylus
• VM type dual magnet system
• Para-toroidal coils improve generating efficiency
• Aluminium tapered cantilever
• Centre shield plate between stereo channels
• Includes HS10 headshell

Type VM Type

Mounting 1/2” centres

Frequency Response 20 - 27,000Hz

Channel Separation 28dB (1kHz)

Output Channel Balance 1.0dB (1kHz)

Output Voltage 4.0mV (1kHz, 5cm/sec.)

Vertical Tracking Angle 23˚

Vertical Tracking Force Range 1.8 – 2.2g (2.0g standard)

Stylus Shape Microlinear

Stylus Size 0.12 x 2.2 mil

Stylus Construction Nude Square Shank

Cantilever Aluminium Tapered Pipe

Coil Impedance 2,700Ω (1kHz)

Static Compliance 40 x 10-6 cm/dyne

Dynamic Compliance 10 x 10-6 cm/dyne (100Hz)

Recommended Load Impedance 47,000Ω

Recommended Load Capacitance 100 – 200pF

Weight 8.0g

Dimensions 17.3 (H) x 17.0 (W) x 28.2 (L) mm

Replacement Stylus VMN40ML

Accessories Included Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2
