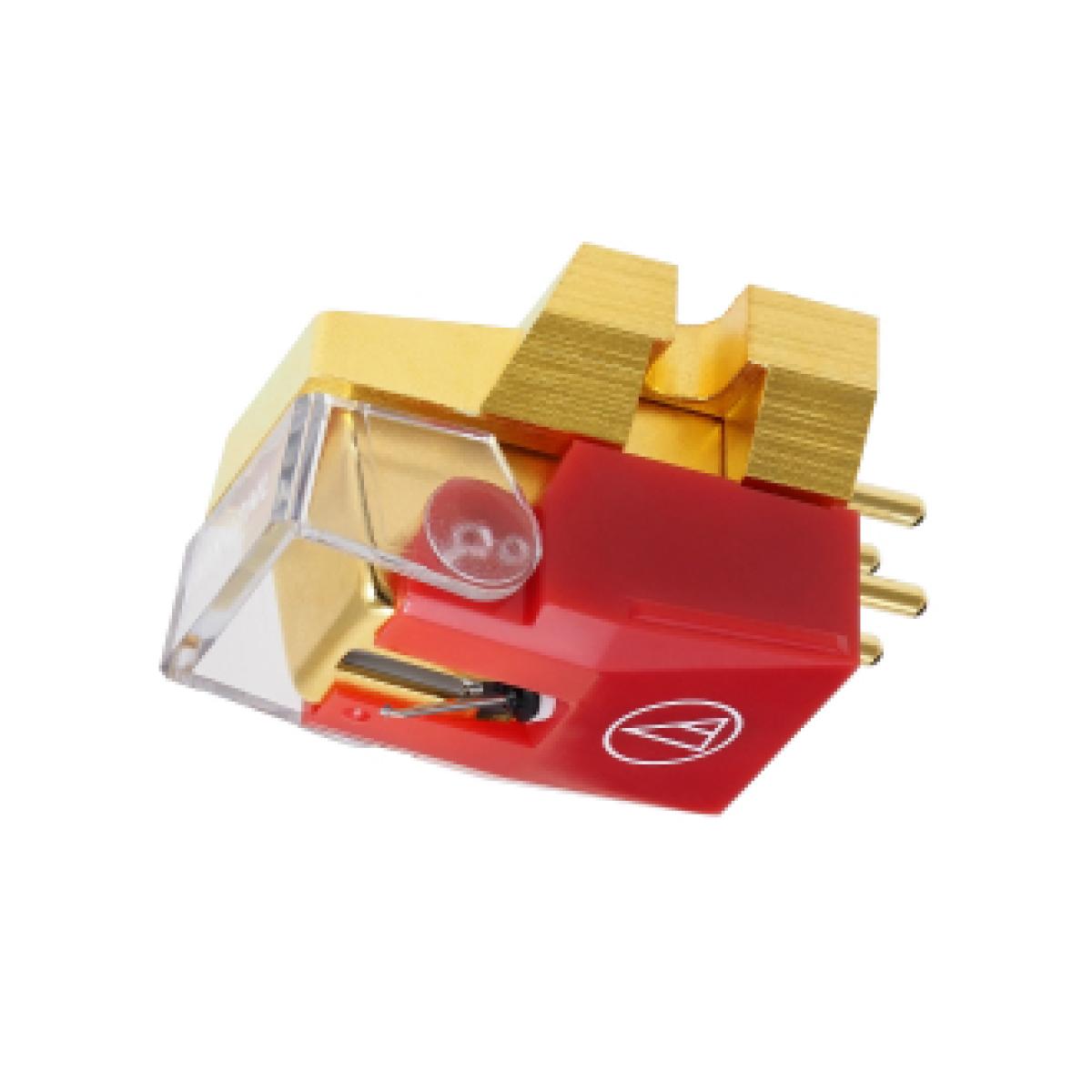

VM740ML
Dual Moving Magnet Cartridge
The VM740ML MicroLine® stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM740ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.
- VM dual magnet cartridge with MicroLine® stylus
- Aluminum tapered cantilever
- Paratoroidal coils improve generating efficiency
- Center shield plate between the left and right channels reduces crosstalk
- Die-cast aluminum alloy housing reduces vibration and adds a natural electrical shield
Frequency Response 20-27,000 Hz
Channel Separation 28 dB (1 kHz)
Vertical Tracking Angle23°
Vertical Tracking Force 1.8-2.2 g (2.0 g standard)
Stylus Construction Nude square shank
Recommended Load Impedance 47,000 ohms
Coil Impedance2,700 ohms (1 kHz)
DC Resistance800 ohms
Coil Inductance460 mH (1 kHz)
Recommended load capacitance100-200 pF
Output 4.0 mV (at 1 kHz, 5 cm/sec)
Channel Balance 1.0 dB (1 kHz)
Stylus Shape 2.2 x 0.12 mil MicroLine®
Cantilever Aluminum tapered pipe
Static Compliance40 x 10-6 cm/dyne
Dynamic Compliance10 x 10-6 cm/dyne (100 Hz)
Mount Half-inch
Weight8.0 g (0.3 oz)
Dimensions17.3 mm (0.7") H x 17.0 mm (0.7") W x 28.2 mm (1.1") D
Replacement Stylus VMN40ML
Accessories IncludedFour cartridge installation screws (5 mm x 2, 10 mm x 2), two washers, two hexagon nuts, non-magnetic screwdriver, brush, lead wire set
-
329.00€
-
329.00€
